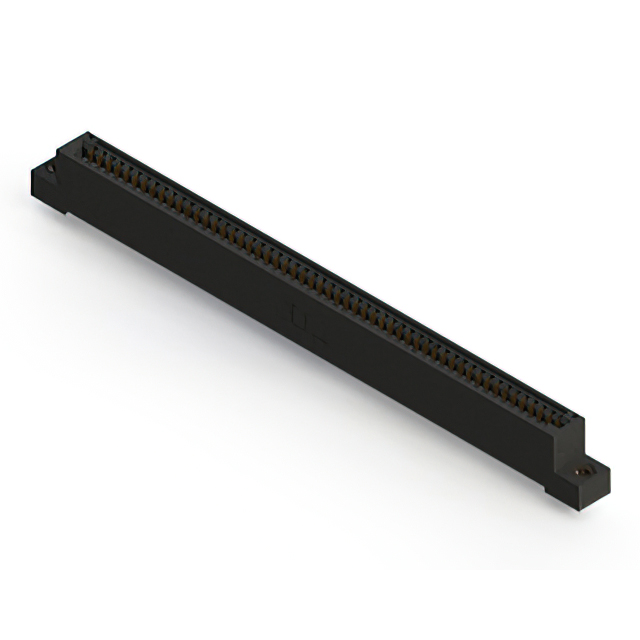

895-054-525-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 54POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-054-525-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 54POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-054-525-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 54 |
| Number of Positions/Bay/Row [custom] | 54 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
895-054 Series
...
| Part | Read Out | Termination Rows | Contact Finish | Card Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Number of Rows | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Gender | Termination | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Color | Number of Positions | Flange Feature | Flange Feature | Features | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | 2 | Gold | Non Specified - Dual Edge | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 2 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Solder | 27 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | Black | 54 | ||||
EDAC Inc. | Dual | 2 | Gold | Non Specified - Dual Edge | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 2 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Solder | 27 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | Black | 54 | ||||
EDAC Inc. | Dual | 2 | Gold | Non Specified - Dual Edge | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 2 | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Solder | 27 | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | Black | 54 | 3.25 mm | 0.128 in | Card Extender | |||
EDAC Inc. | Single | 1 | Gold | Non Specified - Single Edge | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Solder | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | Black | 54 | 54 | ||||
EDAC Inc. | Single | 1 | Gold | Non Specified - Single Edge | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Solder | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | Black | 54 | 54 | ||||||
EDAC Inc. | Dual | 2 | Gold | Non Specified - Dual Edge | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 2 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Solder | 27 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | Black | 54 | |||||||
EDAC Inc. | Dual | 2 | Gold | Non Specified - Dual Edge | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 2 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Solder | 27 | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | Black | 54 | ||||||
EDAC Inc. | Single | 1 | Gold | Non Specified - Single Edge | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Solder | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | Black | 54 | 54 | ||||
EDAC Inc. | Dual | 2 | Gold | Non Specified - Dual Edge | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 2 | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Solder | 27 | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | Black | 54 | Card Extender | |||
EDAC Inc. | Single | 1 | Gold | Non Specified - Single Edge | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | Wire Wrap | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | Black | 54 | 54 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 117.84 | |
Description
General part information
895-054 Series
54 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
