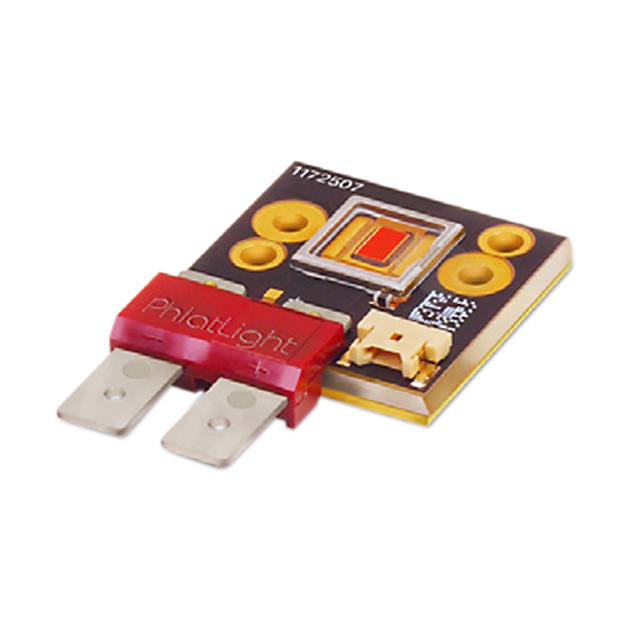

PT-121-RAX-L15-MPK

Active

Luminus Devices Inc.

LED MOD PT-121 AMBER RECT

Search across all available documentation for this part.

Active

Luminus Devices Inc.

LED MOD PT-121 AMBER RECT

Technical Specifications

Parameters and characteristics for this part

Specification	PT-121-RAX-L15-MPK

Color	Amber
Configuration	Rectangle
Current - Max [Max]	27 A
Current - Test	18 A
Features	With Connector
Height [z]	6.3 mm
Lens Type	Flat
Light Emitting Surface (LES) [x]	3 mm
Light Emitting Surface (LES) [y]	4 mm
Lumens/Watt @ Current - Test	54 lm/W
Luminous Flux @ Current/Temperature	2925 lm
Luminous Flux @ Current/Temperature [Max]	3400 lm
Luminous Flux @ Current/Temperature [Min]	2450 lm
Size / Dimension [x]	28 mm
Size / Dimension [y]	42 mm
Temperature - Test	40 °C
Type	LED Module
Voltage - Forward (Vf) (Typ)	3 V
Wavelength	613 nm

Part	Color	Height [z]	Type	Configuration	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Temperature - Test	Size / Dimension [x]	Size / Dimension [y]	Features	Current - Test	Lens Type	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Wavelength	Luminous Flux @ Current/Temperature	Current - Max [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]
Luminus Devices Inc. PT-121-RAX-L15-MPH	Amber	5.7 mm	LED Module	Rectangle	4 mm	3 mm	40 °C	28 mm	42 mm	With Connector	18 A	Flat	3 V	48 lm/W	613 nm	2575 lm	27 A
Luminus Devices Inc. PT-121-B-L11-EPG	Blue	5.61 mm	LED Module	Rectangle	4 mm	3 mm	40 °C	28 mm	42 mm	With Connector	18 A	Flat	3.9 V	15 lm/W	460 nm	1025 lm	27 A
Luminus Devices Inc. PT-121-G-C11-MPB			LED Module
Luminus Devices Inc. PT-121-RAX-L15-MPK	Amber	6.3 mm	LED Module	Rectangle	4 mm	3 mm	40 °C	28 mm	42 mm	With Connector	18 A	Flat	3 V	54 lm/W	613 nm	2925 lm	27 A	2450 lm	3400 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 129.10

General part information

LED Lighting COBs Engines Modules LED Module PT-121 Amber Rectangle
