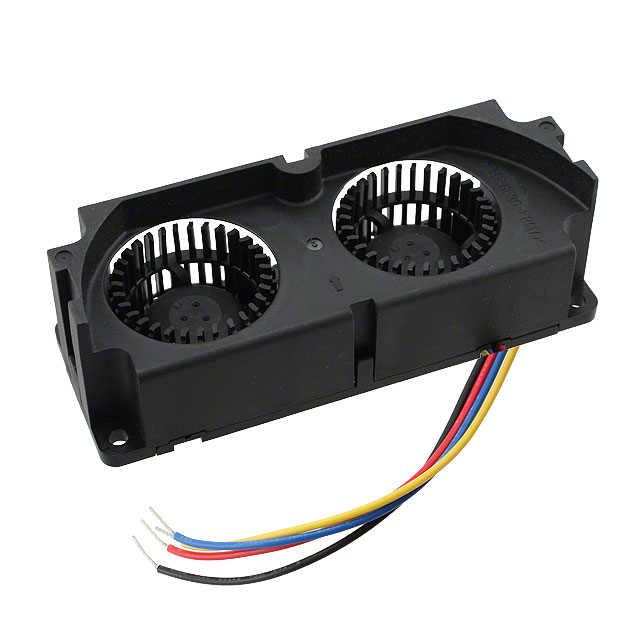

SFB0212HH-F00
ObsoleteDelta Electronics
FAN BLOWER CF 125X45MM 12VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFB0212HH-F00
ObsoleteDelta Electronics
FAN BLOWER CF 125X45MM 12VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFB0212HH-F00 |
|---|---|
| Air Flow | 23.1 CFM |
| Air Flow | 0.647 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.62 A |
| Fan Type | Blower, Centrifugal (Dual) |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 52 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 7.44 W |
| RPM | 7000 RPM |
| Size / Dimension [x] | 125 mm |
| Size / Dimension [y] | 38 mm |
| Static Pressure | 160.2 Pa |
| Static Pressure | 0.643 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 5.5 VDC |
| Weight | 121.11 g |
| Weight | 0.267 lb |
| Width [x] | 45 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SFB0212 Series
Fan Blower, Centrifugal (Dual) 12VDC Rectangular - 125mm L x 38mm H Ball 23.1 CFM (0.647m³/min) 3 Wire Leads
