109E1724K502

Active

Sanyo Denki America Inc.

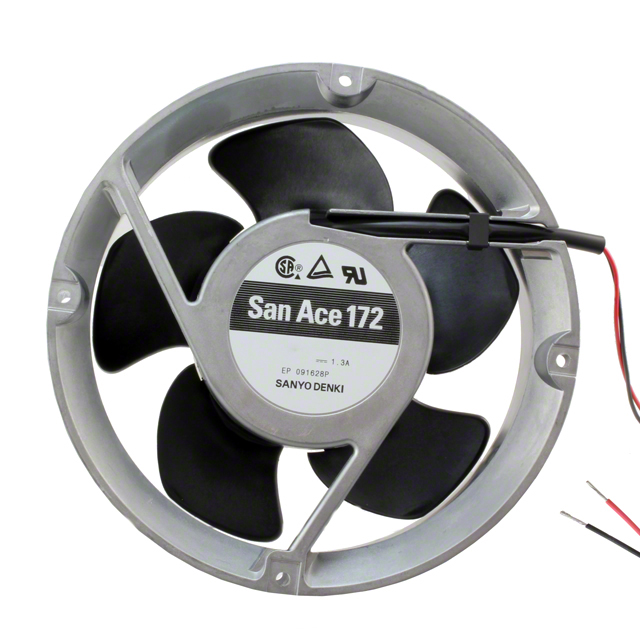

FAN AXIAL 172X51MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System DC Fan Handling Instructions for Fan Motors +1

109E1724K502

Active

Sanyo Denki America Inc.

FAN AXIAL 172X51MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Handling Instructions for Fan Motors +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109E1724K502

Air Flow	8.4 mł/min
Air Flow	300 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	1.3 A
Fan Type	Tubeaxial
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	55 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	31.2 W
RPM	4100 RPM
Size / Dimension	Round
Size / Dimension [diameter]	172 mm
Static Pressure	0.976 in H2O
Static Pressure	243 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	1.7 lbs
Weight	780 g
Width [y]	51 mm

109E1724 Series

Part	Material - Frame	Material - Blade	Static Pressure	Static Pressure	Width [y]	Air Flow	Air Flow	Lifetime @ Temp.	Power (Watts)	Fan Type	Features	Termination	Current Rating (Amps)	Bearing Type	Approval Agency	Noise	Weight	Weight	Size / Dimension	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	RPM
Sanyo Denki America Inc. 109E1724H501	Aluminum	Plastic	137.2 Pa	0.551 in H2O	51 mm	6.33 m³/min	226 CFM	40000 Hrs	13.92 W	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	580 mA	Ball	CSA TUV UL	47 dB	1.7 lbs	780 g	Round	172 mm	-20 °C	70 °C	-20 C	70 °C	24 VDC
Sanyo Denki America Inc. 109E1724M5D01	Aluminum	Plastic	67.6 Pa	0.271 in H2O	51 mm	4.14 mł/min	148 CFM	40000 Hrs	4.8 W	Tubeaxial	Locked Rotor Sensor	3 Wire Leads	0.2 A	Ball	CSA TUV UL	36 dB	1.7 lbs	780 g	Round	172 mm	-20 °C	70 °C	-20 C	70 °C	24 VDC	2000 RPM
Sanyo Denki America Inc. 109E1724H5D01	Aluminum	Plastic	137.2 Pa	0.551 in H2O	51 mm	6.33 m³/min	226 CFM	40000 Hrs	13.92 W	Tubeaxial	Locked Rotor Sensor	3 Wire Leads	580 mA	Ball	CSA TUV UL	47 dB	1.7 lbs	780 g	Round	172 mm	-20 °C	70 °C	-20 C	70 °C	24 VDC
Sanyo Denki America Inc. 109E1724F502	Aluminum	Plastic	95.1 Pa	0.382 in H2O	51 mm	5.04 mł/min	180 CFM	40000 Hrs	8.4 W	Tubeaxial		2 Wire Leads	0.35 A	Ball	CSA TUV UL	42 dB	1.7 lbs	780 g	Round	172 mm	-20 °C	70 °C	-20 C	70 °C	24 VDC	2500 RPM
Sanyo Denki America Inc. 109E1724C5D01	Aluminum	Plastic	308 Pa	1.237 in H2O	51 mm	9.8 m³/min	350 CFM	40000 Hrs	55.2 W	Tubeaxial	Locked Rotor Sensor	3 Wire Leads	2.3 A	Ball	CSA TUV UL	60 dB(A)	1.7 lbs	780 g	Round	172 mm	-20 °C	70 °C	-20 C	70 °C	24 VDC	4800 RPM
Sanyo Denki America Inc. 109E1724K501	Aluminum	Plastic	243 Pa	0.976 in H2O	51 mm	8.4 mł/min	300 CFM	40000 Hrs	31.2 W	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	1.3 A	Ball	CSA TUV UL	55 dB	1.7 lbs	780 g	Round	172 mm	-20 °C	70 °C	-20 C	70 °C	24 VDC	4100 RPM
Sanyo Denki America Inc. 109E1724K502	Aluminum	Plastic	243 Pa	0.976 in H2O	51 mm	8.4 mł/min	300 CFM	40000 Hrs	31.2 W	Tubeaxial		2 Wire Leads	1.3 A	Ball	CSA TUV UL	55 dB	1.7 lbs	780 g	Round	172 mm	-20 °C	70 °C	-20 C	70 °C	24 VDC	4100 RPM
