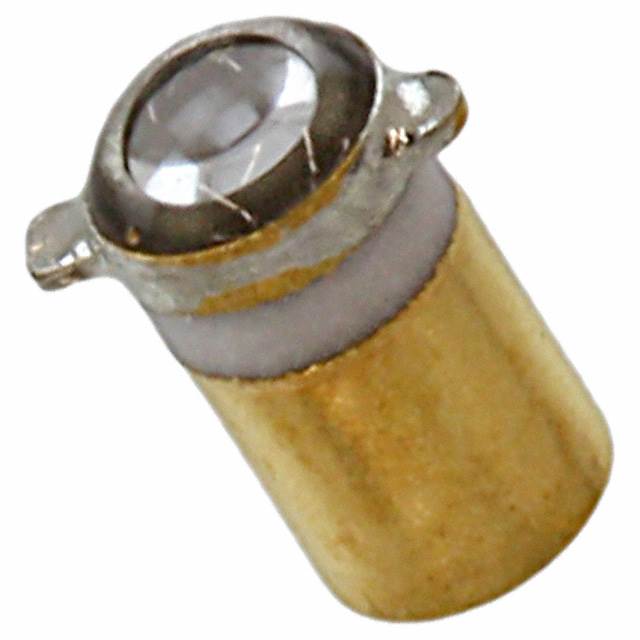

OP604TXV

Active

TT Electronics/Optek Technology

SENSOR PHOTO TOP VIEW PILL

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR PHOTO TOP VIEW PILL

Technical Specifications

Parameters and characteristics for this part

Specification	OP604TXV

Current - Collector (Ic) (Max) [Max]	8 mA
Current - Dark (Id) (Max) [Max]	25 nA
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Top View
Package / Case	Pill
Power - Max [Max]	50 mW
Viewing Angle	36 °
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Package / Case	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Orientation	Viewing Angle	Current - Dark (Id) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max [Max]	Mounting Type
TT Electronics/Optek Technology OP604S	Pill	8 mA	50 V	Top View	36 °	25 nA	-55 °C	125 °C	50 mW	Surface Mount
TT Electronics/Optek Technology OP604TXV	Pill	8 mA	50 V	Top View	36 °	25 nA	-55 °C	125 °C	50 mW	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 32.00

General part information

Phototransistors Top View Pill
