5219464F
ActiveDIALIGHT

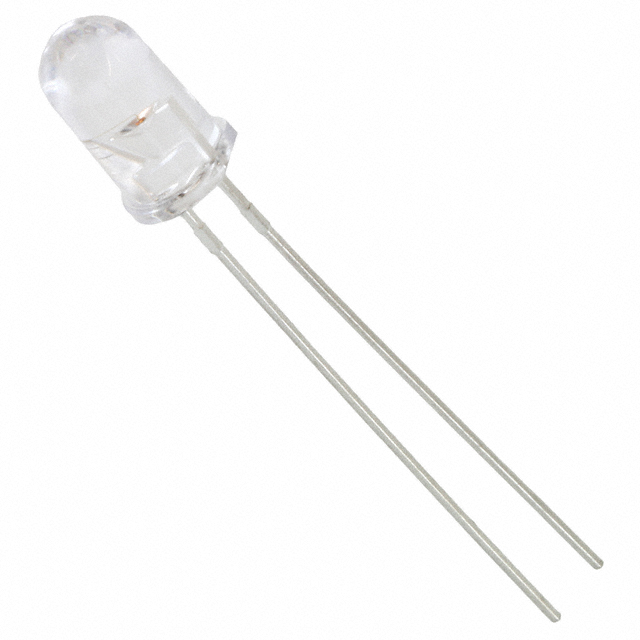

LED RED CLEAR 5MM T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5219464F |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 8.81 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 4.83 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 125 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | 5 mm |
| Viewing Angle | 24 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.66 | |
| 10 | $ 0.40 | |||
| 100 | $ 0.27 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.21 | |||
Description
General part information
5219464 Series
Red LED Indication - Discrete 2.2V Radial
