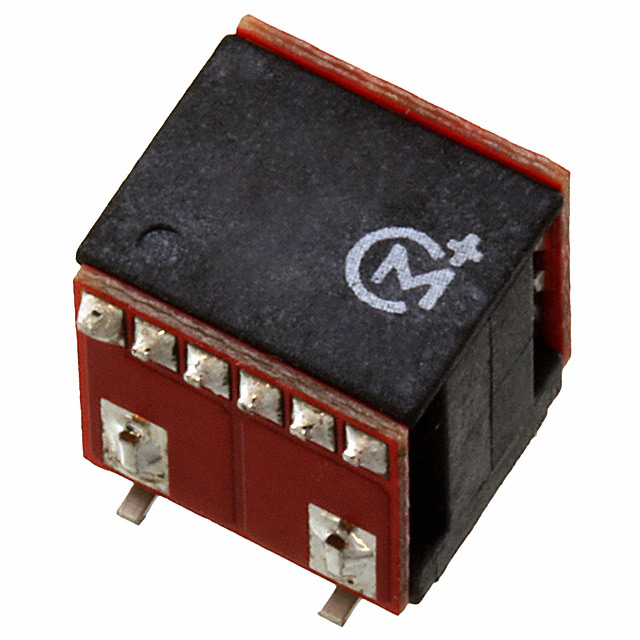

MTU1D1205MC
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER +/-5V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MTU1D1205MC
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER +/-5V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MTU1D1205MC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 100 mA |
| Current - Output (Max) | 100 mA |
| Efficiency | 85 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-SMD Module |
| Size / Dimension [x] | 8.4 mm |
| Size / Dimension [x] | 0.33 in |
| Size / Dimension [y] | 8.2 mm |
| Size / Dimension [y] | 0.32 in |
| Size / Dimension [z] | 0.34 in |
| Size / Dimension [z] | 8.5 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
MTU1D12 Series
| Part | Voltage - Output 2 | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Output 1 | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Type | Voltage - Isolation | Number of Outputs | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Package / Case | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. | -9 V | 13.2 V | Surface Mount | 9 V | 10.8 V | 8.2 mm | 0.34 in | 8.5 mm | 8.4 mm | 0.32 in | 0.33 in | Isolated Module | 1000 V | 2 | 87 % | 85 °C | -40 °C | ITE (Commercial) | 5-SMD Module | ||
Murata Power Solutions Inc. | -15 V | 13.2 V | Surface Mount | 15 V | 10.8 V | 8.2 mm | 0.34 in | 8.5 mm | 8.4 mm | 0.32 in | 0.33 in | Isolated Module | 1000 V | 2 | 88 % | 85 °C | -40 °C | ITE (Commercial) | 5-SMD Module | 33 mA | |
Murata Power Solutions Inc. | -5 V | 13.2 V | Surface Mount | 5 V | 10.8 V | 8.2 mm | 0.34 in | 8.5 mm | 8.4 mm | 0.32 in | 0.33 in | Isolated Module | 1000 V | 2 | 85 % | 85 °C | -40 °C | ITE (Commercial) | 5-SMD Module | 100 mA | 100 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MTU1D12 Series
Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 10.8V - 13.2V Input
