W23F1C-P27LFG0-650S

Active

ODU

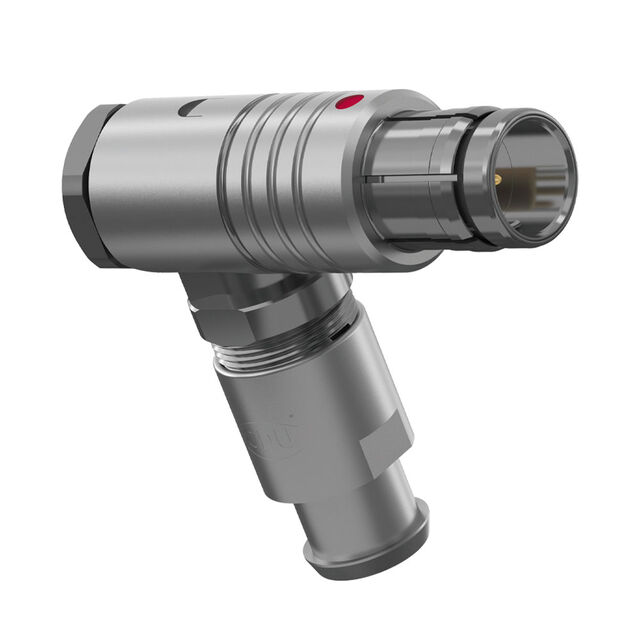

ODU MINI-SNAP RT.ANGLE PLUG, STY

Deep-Dive with AI

Search across all available documentation for this part.

W23F1C-P27LFG0-650S

Active

ODU

ODU MINI-SNAP RT.ANGLE PLUG, STY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W23F1C-P27LFG0-650S

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [custom]	0.236 in, 0.256 in
Cable Opening [custom]	6.5 mm, 6 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	27
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	1
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	3
Shielding	Unshielded
Voltage Rating	300 VDC

W23F1C-P Series

Part	Shell Finish	Color	Contact Finish - Mating	Shell Size - Insert	Shielding	Ingress Protection	Primary Material	Voltage Rating	Connector Type	Fastening Type	Features	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Insert Material	Backshell Material, Plating	Cable Opening [custom]	Cable Opening [custom]	Contact Material	Orientation	Applications	Material Flammability Rating	Shell Material	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]
ODU W23F1C-P12MPH0-800S	Chrome over Nickel	Silver	Gold	3	Unshielded	IP50	Metal	450 V	Male Pins Plug	Push-Pull	Backshell Strain Relief	12 A	-40 °C	120 °C	12	Free Hanging (In-Line) Right Angle	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	0.295 in 0.315 in	7.5 mm 8 mm	Brass	1	Industrial Medical Military Testing Equipment & Measurement	UL94 V-0	Brass
ODU W23F1C-P27LFG0-950S	Chrome over Nickel	Silver	Gold	3	Unshielded	IP50	Metal	300 VDC	Male Pins Plug	Push-Pull	Backshell Strain Relief	7.5 A	-40 °C	120 °C	27	Free Hanging (In-Line) Right Angle	Polyetheretherketone (PEEK)	Brass Chrome over Nickel			Brass	1	Industrial Medical Military Testing Equipment & Measurement	UL94 V-0	Brass	0.374 in	9.5 mm	0.354 in	9 mm
ODU W23F1C-P12MPH0-020S	Chrome over Nickel	Silver	Gold	3	Unshielded	IP50	Metal	450 V	Male Pins Plug	Push-Pull	Backshell Strain Relief	12 A	-40 °C	120 °C	12	Free Hanging (In-Line) Right Angle	Polyetheretherketone (PEEK)	Brass Chrome over Nickel			Brass	1	Industrial Medical Military Testing Equipment & Measurement	UL94 V-0	Brass
ODU W23F1C-P27MFG0-020S	Chrome over Nickel	Silver	Gold	3	Unshielded	IP50	Metal	300 VDC	Male Pins Plug	Push-Pull	Backshell Strain Relief	7.5 A	-40 °C	120 °C	27	Free Hanging (In-Line) Right Angle	Polyetheretherketone (PEEK)	Brass Chrome over Nickel			Brass	1	Industrial Medical Military Testing Equipment & Measurement	UL94 V-0	Brass
ODU W23F1C-P27LFG0-650S	Chrome over Nickel	Silver	Gold	3	Unshielded	IP50	Metal	300 VDC	Male Pins Plug	Push-Pull	Backshell Strain Relief	7.5 A	-40 °C	120 °C	27	Free Hanging (In-Line) Right Angle	Polyetheretherketone (PEEK)	Brass Chrome over Nickel	0.236 in 0.256 in	6 mm 6.5 mm	Brass	1	Industrial Medical Military Testing Equipment & Measurement	UL94 V-0	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 228.02

Description

General part information

W23F1C-P Series

27 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available
