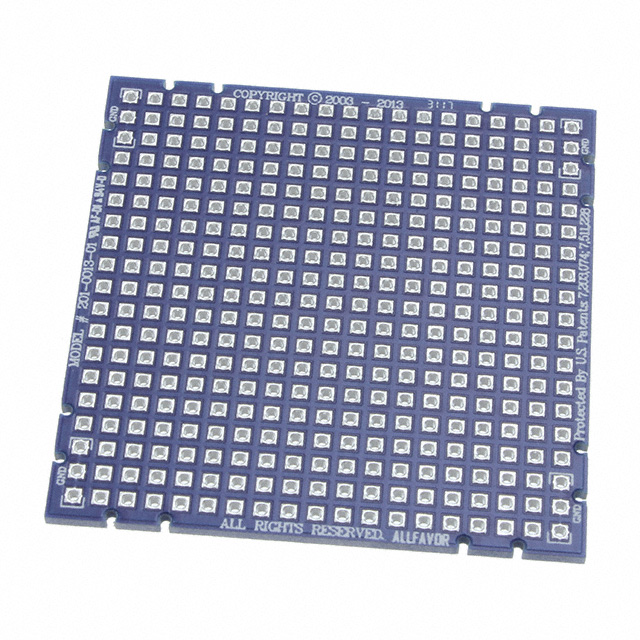

201-0013-01
ActiveSchmartboard, Inc.
BREADBOARD GENERAL PURPOSE NPTH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
201-0013-01
ActiveSchmartboard, Inc.
BREADBOARD GENERAL PURPOSE NPTH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 201-0013-01 |
|---|---|
| Circuit Pattern | Custom |
| Hole Diameter [diameter] | 0.97 mm |
| Hole Diameter [diameter] | 0.038 in |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Plating | Non-Plated Through Hole (NPTH) |
| Proto Board Type | Breadboard, General Purpose |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.50 | |
Description
General part information
201-0013 Series
Breadboard, General Purpose Non-Plated Through Hole (NPTH) Custom 0.1" (2.54mm) Grid
