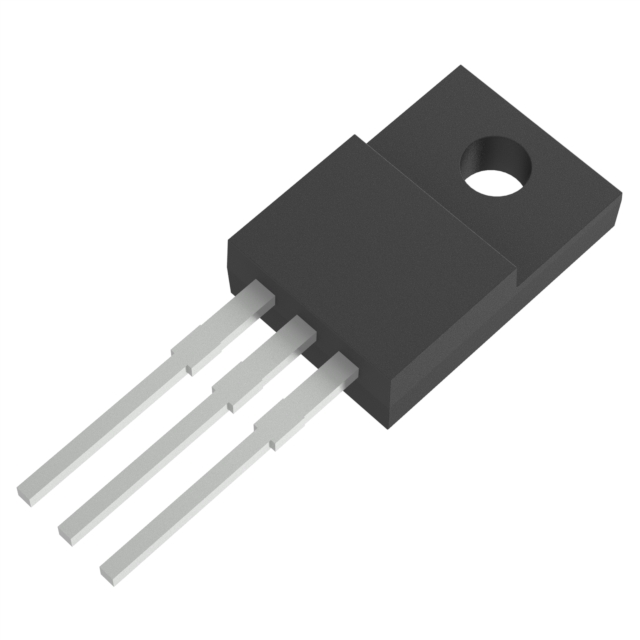

2SK2299N

Obsolete

Rohm Semiconductor

MOSFET N-CH 450V 7A TO220FN

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

MOSFET N-CH 450V 7A TO220FN

Technical Specifications

Parameters and characteristics for this part

Specification	2SK2299N

Current - Continuous Drain (Id) @ 25°C	7 A
Drain to Source Voltage (Vdss)	450 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Input Capacitance (Ciss) (Max) @ Vds	870 pF
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TO-220-3 Full Pack
Rds On (Max) @ Id, Vgs	1.1 Ohm
Supplier Device Package	TO-220FN
Technology	MOSFET (Metal Oxide)
Vgs (Max)	30 V

Part	Vgs (Max)	Technology	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Supplier Device Package	Package / Case	Operating Temperature	Rds On (Max) @ Id, Vgs	FET Type	Input Capacitance (Ciss) (Max) @ Vds	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)
Rohm Semiconductor 2SK2299N	30 V	MOSFET (Metal Oxide)	7 A	Through Hole	TO-220FN	TO-220-3 Full Pack	150 °C	1.1 Ohm	N-Channel	870 pF	450 V	10 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 450 V 7A (Ta) 30W (Tc) Through Hole TO-220FN
