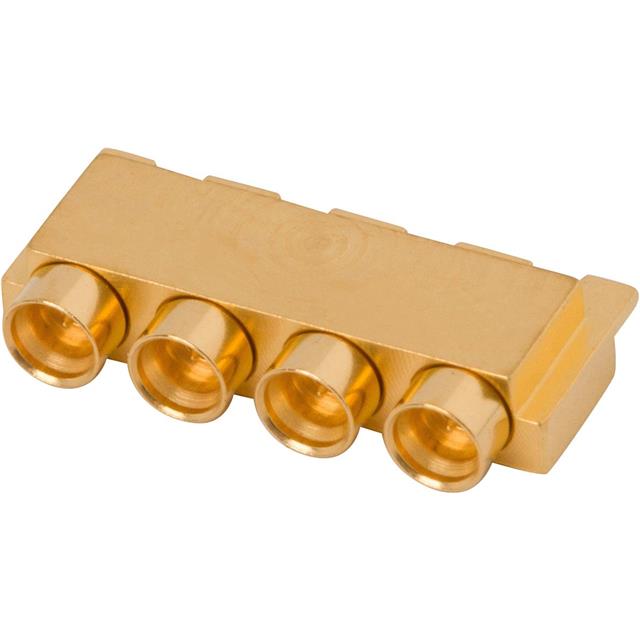

3811-60052

Active

Amphenol SV Microwave

SMPS MALE EDGE LAUNCH CONNECTOR,

Search across all available documentation for this part.

Active

Amphenol SV Microwave

SMPS MALE EDGE LAUNCH CONNECTOR,

Technical Specifications

Parameters and characteristics for this part

Specification	3811-60052

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMPS
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Smooth Bore
Frequency - Max [Max]	65 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	4
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Fastening Type	Body Material	Mounting Type	Number of Ports	Connector Type	Center Contact Plating	Shield Termination	Features	Connector Style	Mating Cycles	Housing Color	Body Finish	Impedance	Dielectric Material	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Frequency - Max [Max]
Amphenol SV Microwave 3811-60050	Snap-On	Stainless Steel	Board Edge Cutout Surface Mount	2	Male Pin Plug	Gold	Solder	Smooth Bore	SMPS	500	Gold	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Beryllium Copper	-65 ░C	165 °C	Solder	65 GHz
Amphenol SV Microwave 3811-60005	Snap-On	Stainless Steel	Surface Mount	1	Male Pin Plug	Gold	Solder	Hermetically Sealed Smooth Bore	SMPS	500	Gold	Gold	50 Ohms		Nickel-Cobalt	-55 °C	125 °C	Solder
Amphenol SV Microwave 3811-60049	Snap-On	Stainless Steel	Board Edge Cutout Surface Mount	2	Male Pin Plug	Gold	Solder	Full Detent	SMPS		Gold	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Beryllium Copper	-65 ░C	165 °C	Solder	65 GHz
Amphenol SV Microwave 3811-60019-TD	Snap-On	Stainless Steel	Board Edge End Launch	8	Male Pin Plug	Gold	Solder	Full Detent	SMPS		Gold	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Beryllium Copper			Solder
Amphenol SV Microwave 3811-60052	Snap-On	Stainless Steel	Board Edge Cutout Surface Mount	4	Male Pin Plug	Gold	Solder	Smooth Bore	SMPS	500	Gold	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Beryllium Copper	-65 ░C	165 °C	Solder	65 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 159.91

General part information

SMPS Connector Plug, Male Pin 50 Ohms Board Edge, Cutout; Surface Mount Solder
