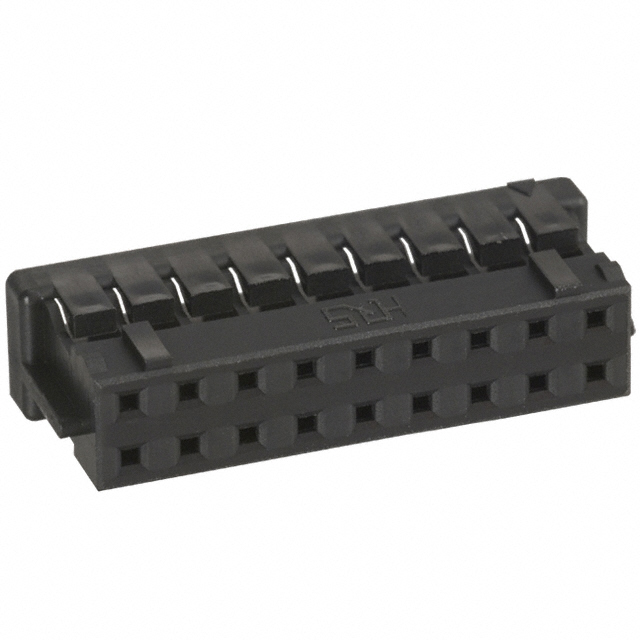

DF11-18DS-2C(20)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT HSG 18POS 2.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF11-18DS-2C(20)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT HSG 18POS 2.00MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF11-18DS-2C(20)

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	18
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

DF11 Series

...

Part	Color	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Termination	Mounting Type	Note	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Connector Type	Insulation Material	Number of Positions	Contact Finish - Post	Insulation Color	Fastening Type	Features	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Mated Stacking Heights	Pitch - Mating [x]	Pitch - Mating [x]	Style	Contact Material	Material Flammability Rating	Termination	Insulation Height	Insulation Height	Current Rating (Amps)	Number of Positions Loaded	Applications	Voltage Rating	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Length - Mating	Contact Length - Mating	Overall Contact Length [x]	Overall Contact Length [x]
Hirose Electric USA, Inc. DF11-8DS-2C(20)	Black	2	-30 ░C	85 °C	Female Socket	Crimp	Free Hanging (In-Line)	Contacts Not Included	2 mm	0.079 in	0.079 in	2 mm	Receptacle	Nylon Polyamide (PA)	8
Hirose Electric USA, Inc. DF11-30DS-2V(20)		2	-30 ░C	85 °C	Female Socket		Surface Mount						Receptacle	Nylon Polyamide (PA)	30	Tin	Beige	Friction Lock	Solder Retention	Square	0.079 in	2 mm	7.55 mm 8.2 mm	0.079 in	2 mm	Board to Board Cable	Brass	UL94 V-0	Solder	5.95 mm	0.234 in	2 A	All	General Purpose	250 VDC
Hirose Electric USA, Inc. DF11-18DP-2DS(52)		2	-40 °C	85 °C	Male Pin		Through Hole Right Angle						Header	Nylon Polyamide (PA)	18		Black	Detent Lock		Square	0.079 in	2 mm		0.079 in	2 mm	Board to Board Cable	Brass	UL94 V-0	Solder	5 mm	0.197 in	2 A	All		250 VDC	Gold	0.118 in	3 mm	0.203 Ám	8 Áin	Shrouded - 4 Wall	3 mm	0.118 in
Hirose Electric USA, Inc. DF11-4DS-2V(50)		2	-30 ░C	85 °C	Female Socket		Surface Mount						Receptacle	Nylon Polyamide (PA)	4	Tin	Beige	Friction Lock	Solder Retention	Square	0.079 in	2 mm	7.55 mm 8.2 mm	0.079 in	2 mm	Board to Board Cable	Brass	UL94 V-0	Solder	5.95 mm	0.234 in	2 A	All	General Purpose	250 VDC	Gold			0.203 Ám	8 Áin
Hirose Electric USA, Inc. DF11-8DP-2DSA(38)
Hirose Electric USA, Inc. DF11-30DS-2V(50)		2	-30 ░C	85 °C	Female Socket		Surface Mount						Receptacle	Nylon Polyamide (PA)	30	Tin	Beige	Friction Lock	Solder Retention	Square	0.079 in	2 mm	7.55 mm 8.2 mm	0.079 in	2 mm	Board to Board Cable	Brass	UL94 V-0	Solder	5.95 mm	0.234 in	2 A	All	General Purpose	250 VDC	Gold			0.203 Ám	8 Áin
Hirose Electric USA, Inc. DF11-24DP-2DSA(08)		2	-30 ░C	85 °C	Male Pin		Through Hole						Header	Nylon Polyamide (PA)	24	Tin	Black	Detent Lock		Square	0.079 in	2 mm		0.079 in	2 mm	Board to Board Cable	Brass	UL94 V-0	Solder	6.6 mm	0.26 in	2 A	All		250 VDC		0.118 in	3 mm	1 µm	39.4 µin	Shrouded - 4 Wall	3 mm	0.118 in	0.299 in	7.6 mm
Hirose Electric USA, Inc. DF11-18DS-2C(20)	Black	2	-30 ░C	85 °C	Female Socket	Crimp	Free Hanging (In-Line)	Contacts Not Included	2 mm	0.079 in	0.079 in	2 mm	Receptacle	Nylon Polyamide (PA)	18
Hirose Electric USA, Inc. DF11-8DP-2DS(56)		2	-30 ░C	85 °C	Male Pin		Through Hole Right Angle						Header	Nylon Polyamide (PA)	8		Black	Detent Lock		Square	0.079 in	2 mm		0.079 in	2 mm	Board to Board Cable	Brass	UL94 V-0	Solder	5 mm	0.197 in	2 A	All		250 VDC	Gold	0.118 in	3 mm	0.76 Ám	30 Áin	Shrouded - 4 Wall	3 mm	0.118 in
Hirose Electric USA, Inc. DF11-24DP-2DS(52)		2	-40 °C	85 °C	Male Pin		Through Hole Right Angle						Header	Nylon Polyamide (PA)	24		Black	Detent Lock		Square	0.079 in	2 mm		0.079 in	2 mm	Board to Board Cable	Brass	UL94 V-0	Solder	5 mm	0.197 in	2 A	All		250 VDC	Gold	0.118 in	3 mm	0.203 Ám	8 Áin	Shrouded - 4 Wall	3 mm	0.118 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DF11 Series

18 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
