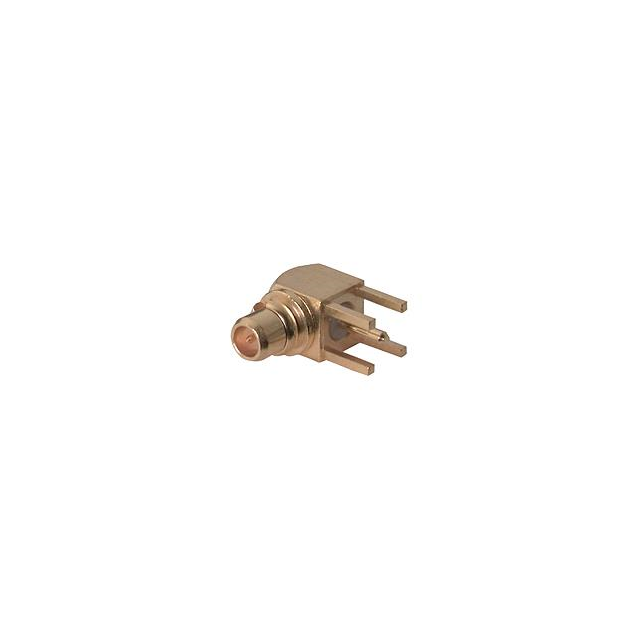

84_MMCX-50-0-1/111_OH

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

84_MMCX-50-0-1/111_OH

Technical Specifications

Parameters and characteristics for this part

Specification	84_MMCX-50-0-1/111_OH

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	170 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Body Material	Shield Termination	Impedance	Housing Color	Voltage Rating	Dielectric Material	Number of Ports	Body Finish	Center Contact Material	Connector Type	Connector Style	Mounting Type	Contact Termination	Fastening Type	Mating Cycles	Frequency - Max [Max]
Huber+Suhner, Inc. 84_MMCX-50-0-1/111_OH	155 °C	-55 °C	Gold	Brass	Solder	50 Ohms	Gold	170 V	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	1	Gold	Beryllium Copper	Male Pin Plug	MMCX	Through Hole Right Angle	Solder	Snap-On	500	6000 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 12.83

General part information

MMCX Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
