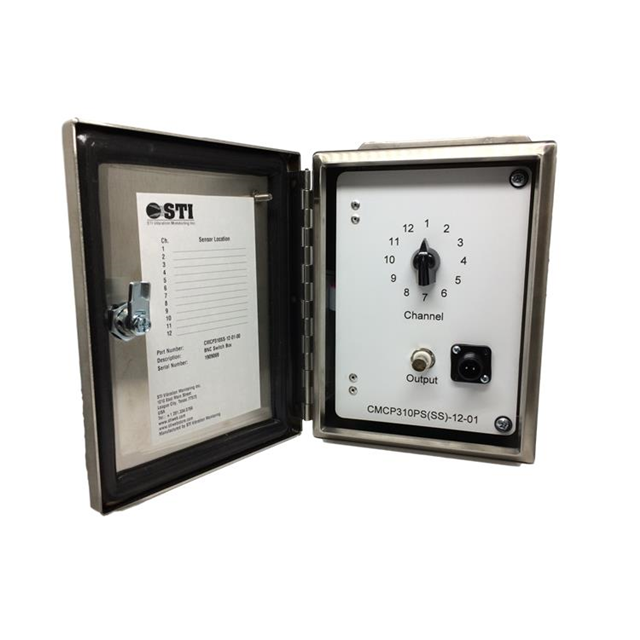

CMCP310SS-48-01-00

Active

STI Vibration Monitoring

JUNCTION BOX S STL 16"L X 14"W

Search across all available documentation for this part.

Active

STI Vibration Monitoring

JUNCTION BOX S STL 16"L X 14"W

Technical Specifications

Parameters and characteristics for this part

Part	Color	Ratings	Area (L x W) [x]	Area (L x W) [x]	Height [z]	Height [z]	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Design	Area (L x W)	Area (L x W)
STI Vibration Monitoring CMCP310SS-36-01-00	Gray	IP66 NEMA 4X	224 in˛	1445 cm˛	10 in	254 mm	Junction Box	355.6 mm	16 in	14 in	406.4 mm	Cover Included
STI Vibration Monitoring CMCP310SS-48-01-00	Gray	IP66 NEMA 4X			10 in	254 mm	Junction Box	355.6 mm	16 in	14 in	406.4 mm	Cover Included	1445 cm²	224 in²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1945.00

General part information

Junction Box Metal, Stainless Steel Gray Cover Included 16.000" L x 14.000" W (406.40mm x 355.60mm) X 10.000" (254.00mm)
