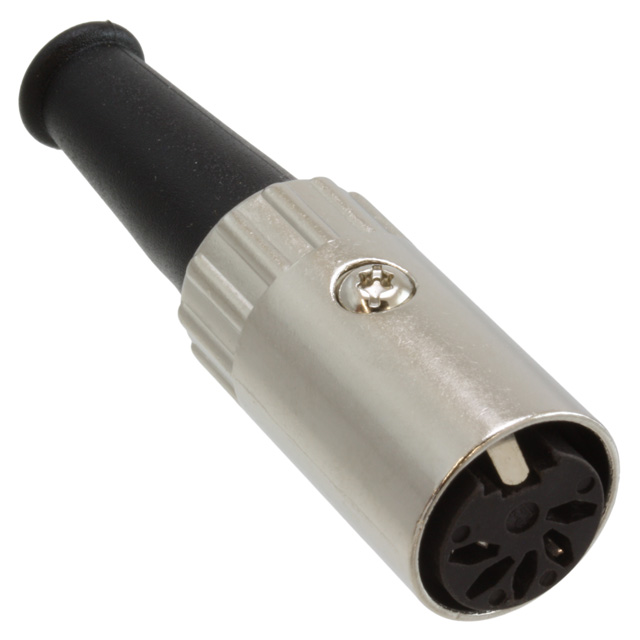

06AL5FX

Active

Switchcraft Inc.

CONN PLUG FMALE DIN 5POS SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE DIN 5POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	06AL5FX

Color	Silver
Connector Type	Female Sockets, Plug
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Ground, Strain Relief, Backshell
Insert Material	Plastic
Mounting Type	Free Hanging (In-Line)
Orientation	F
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	DIN
Termination	Solder
Voltage Rating	34 V

Part	Connector Type	Shell Material	Termination	Shell Finish	Shell Size - Insert	Orientation	Current Rating (Amps)	Mounting Type	Color	Features	Fastening Type	Primary Material	Insert Material	Voltage Rating
Switchcraft Inc. 06AL5FX	Female Sockets Plug	Zinc Die Cast	Solder	Nickel	DIN	F	3 A	Free Hanging (In-Line)	Silver	Backshell Ground Strain Relief	Push-Pull	Metal	Plastic	34 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Solder
