853-87-058-30-051101

Active

PRECI-DIP SA

CONN SOCKET 58POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

853-87-058-30-051101

Active

PRECI-DIP SA

CONN SOCKET 58POS 0.05 GOLD SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	853-87-058-30-051101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	5.16 mm
Insulation Height	0.203 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	58
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

853-87 Series

...

Part	Mounting Type	Fastening Type	Contact Shape	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Material	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Contact Finish - Post	Termination	Number of Positions	Insulation Height [custom]	Insulation Height [custom]	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Connector Type	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height
PRECI-DIP SA 853-87-010-10-001101	Through Hole	Push-Pull	Circular	Beryllium Copper	0.05 in	1.27 mm	Black	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	0.05 in	1.27 mm	2	Tin	Solder	10	0.157 in	4 mm	UL94 V-0	0.094 in	2.4 mm	All	Socket
PRECI-DIP SA 853-87-044-30-051101	Surface Mount	Push-Pull	Circular	Beryllium Copper	0.05 in	1.27 mm	Black	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash			2	Tin	Solder	44			UL94 V-0			All	Socket	Board Guide	2.54 mm	0.1 in	5.16 mm	0.203 in
PRECI-DIP SA 853-87-078-30-051101	Surface Mount	Push-Pull	Circular	Beryllium Copper	0.05 in	1.27 mm	Black	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash			2	Tin	Solder	78			UL94 V-0			All	Socket	Board Guide	2.54 mm	0.1 in	5.16 mm	0.203 in
PRECI-DIP SA 853-87-008-30-051101	Surface Mount	Push-Pull	Circular	Beryllium Copper	0.05 in	1.27 mm	Black	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash			2	Tin	Solder	8			UL94 V-0			All	Socket	Board Guide	2.54 mm	0.1 in	5.16 mm	0.203 in
PRECI-DIP SA 853-87-072-20-001101	Through Hole Right Angle	Push-Pull	Circular	Beryllium Copper	0.05 in	1.27 mm	Black	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	0.05 in	1.27 mm	2	Tin	Solder	72			UL94 V-0	0.13 in	3.3 mm	All	Socket				3.25 mm	0.128 in
PRECI-DIP SA 853-87-084-30-001101	Surface Mount	Push-Pull	Circular	Beryllium Copper	0.05 in	1.27 mm	Black	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	0.05 in	1.27 mm	2	Tin	Solder	84			UL94 V-0			All	Socket				5.16 mm	0.203 in
PRECI-DIP SA 853-87-058-30-051101	Surface Mount	Push-Pull	Circular	Beryllium Copper	0.05 in	1.27 mm	Black	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash			2	Tin	Solder	58			UL94 V-0			All	Socket	Board Guide	2.54 mm	0.1 in	5.16 mm	0.203 in
PRECI-DIP SA 853-87-078-20-001101	Through Hole Right Angle	Push-Pull	Circular	Beryllium Copper	0.05 in	1.27 mm	Black	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	0.05 in	1.27 mm	2	Tin	Solder	78			UL94 V-0	0.13 in	3.3 mm	All	Socket				3.25 mm	0.128 in
PRECI-DIP SA 853-87-092-20-001101	Through Hole Right Angle	Push-Pull	Circular	Beryllium Copper	0.05 in	1.27 mm	Black	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	0.05 in	1.27 mm	2	Tin	Solder	92			UL94 V-0	0.13 in	3.3 mm	All	Socket				3.25 mm	0.128 in
PRECI-DIP SA 853-87-094-10-001101	Through Hole	Push-Pull	Circular	Beryllium Copper	0.05 in	1.27 mm	Black	Gold	-55 °C	125 °C	Female Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	0.05 in	1.27 mm	2	Tin	Solder	94	0.157 in	4 mm	UL94 V-0	0.094 in	2.4 mm	All	Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 15.24

Description

General part information

853-87 Series

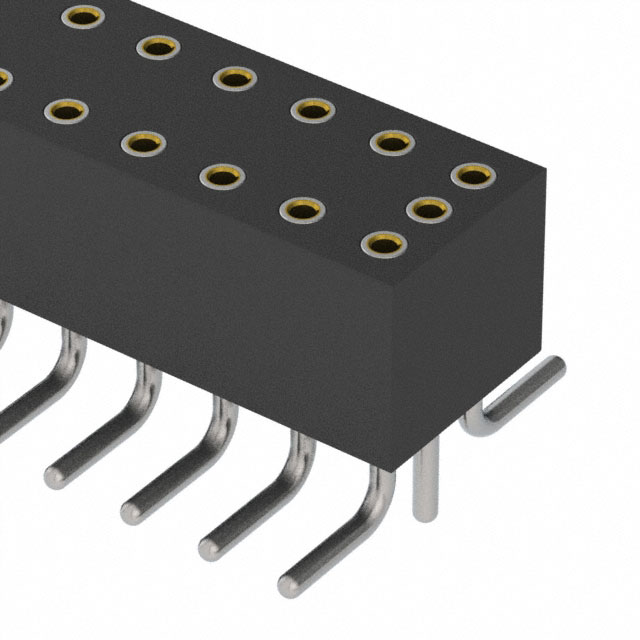

58 Position Socket Connector 0.050" (1.27mm) Surface Mount Gold

Documents

Technical documentation and resources

No documents available
