TWN0.75SV100

Active

Techflex

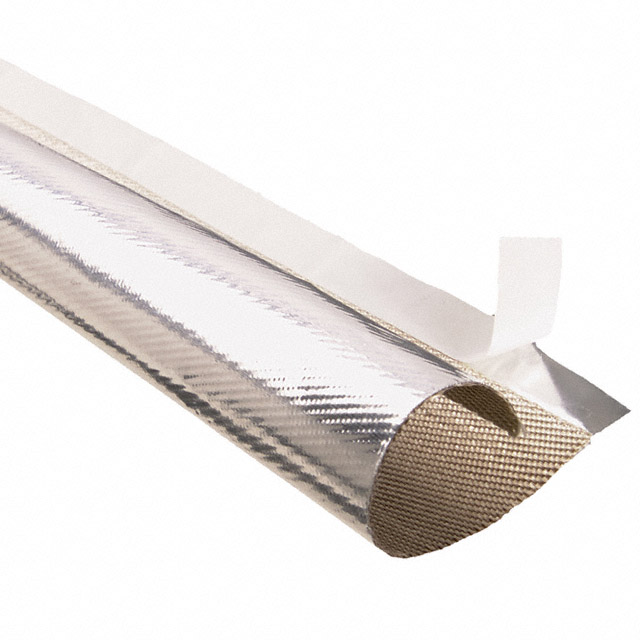

SELF WRAP 3/4" X 100' SILVER

Search across all available documentation for this part.

Active

Techflex

SELF WRAP 3/4" X 100' SILVER

Technical Specifications

Parameters and characteristics for this part

Specification	TWN0.75SV100

Abrasion Protection	Abrasion Resistant
Color	Silver
Diameter - Inside, Non-Expanded [diameter]	19.05 mm
Diameter - Inside, Non-Expanded [diameter]	0.75 in
Features	Clean Cut, Adhesive Closure Strip, Chemical Resistant
Heat Protection	Heat Resistant
Length	100 ft
Length	30.48 m
Liquid Protection	Gasoline Resistant
Material	Halogen Free, Fiberglass, Aluminized
Material Flammability Rating	Non Combustible
Operating Temperature [Max]	255 °C
Operating Temperature [Min]	-60 °C
Type	Self Wrap
Type Attributes	Split Flexible Tube
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm
Width [x]	63.5 mm
Width [x]	2.5 in

Part	Color	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Heat Protection	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Width [x]	Width [x]	Wall Thickness [custom]	Wall Thickness [custom]	Material Flammability Rating	Features	Abrasion Protection	Type Attributes	Material	Liquid Protection	Type
Techflex TWN0.75SV100	Silver	19.05 mm	0.75 in	Heat Resistant	-60 °C	255 °C	100 ft	30.48 m	63.5 mm	2.5 in	0.025 in	0.64 mm	Non Combustible	Adhesive Closure Strip Chemical Resistant Clean Cut	Abrasion Resistant	Split Flexible Tube	Aluminized Fiberglass Halogen Free	Gasoline Resistant	Self Wrap

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Self Wrap X 100' (30.48m) Silver
