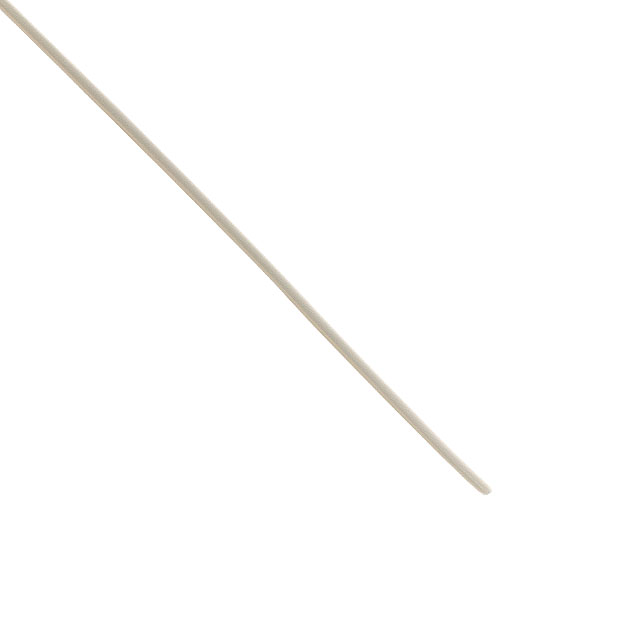

2916 WH001

Obsolete

ALPHA WIRE

HOOK-UP STRND 16AWG WHITE 1000'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2916 WH001

Obsolete

ALPHA WIRE

HOOK-UP STRND 16AWG WHITE 1000'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2916 WH001

Cable Type	Hook-Up
Conductor Material	Nickel Coated, Copper
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Features	High Temperature, Chemical Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	0.069 in
Jacket (Insulation) Diameter [diameter]	1.75 mm
Jacket (Insulation) Thickness	0.006 in
Jacket (Insulation) Thickness	0.15 mm
Length	1000 ft
Length	304.8 m
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-150 °C
Ratings	UL Style 11540
Voltage	600 V
Wire Gauge	16 AWG

2916 Series

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Wire Gauge	Jacket Color	Ratings	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Length [x]	Length [x]
ALPHA WIRE 2916 RD001	0.006 in	0.15 mm	300 °C	-150 °C	Copper Nickel Coated	600 V	19	0.0117 in	Hook-Up	16 AWG	Red	UL Style 11540	1000 ft	304.8 m	0.069 in	1.75 mm	Chemical Resistant High Temperature UV Resistant
ALPHA WIRE 2916 BL001	0.006 in	0.15 mm	300 °C	-150 °C	Copper Nickel Coated	600 V	19	0.0117 in	Hook-Up	16 AWG	Blue	UL Style 11540	1000 ft	304.8 m	0.069 in	1.75 mm	Chemical Resistant High Temperature UV Resistant
ALPHA WIRE 2916 BK005	0.006 in	0.15 mm	300 °C	-150 °C	Copper Nickel Coated	600 V	19	0.0117 in	Hook-Up	16 AWG	Black	UL Style 11540			0.069 in	1.75 mm	Chemical Resistant High Temperature UV Resistant	30.5 m	100 ft
ALPHA WIRE 2916 BR005	0.006 in	0.15 mm	300 °C	-150 °C	Copper Nickel Coated	600 V	19	0.0117 in	Hook-Up	16 AWG	Brown	UL Style 11540			0.069 in	1.75 mm	Chemical Resistant High Temperature UV Resistant	30.5 m	100 ft
ALPHA WIRE 2916 OR001	0.006 in	0.15 mm	300 °C	-150 °C	Copper Nickel Coated	600 V	19	0.0117 in	Hook-Up	16 AWG	Orange	UL Style 11540	1000 ft	304.8 m	0.069 in	1.75 mm	Chemical Resistant High Temperature UV Resistant
ALPHA WIRE 2916 BR001	0.006 in	0.15 mm	300 °C	-150 °C	Copper Nickel Coated	600 V	19	0.0117 in	Hook-Up	16 AWG	Brown	UL Style 11540	1000 ft	304.8 m	0.069 in	1.75 mm	Chemical Resistant High Temperature UV Resistant
ALPHA WIRE 2916 WH001	0.006 in	0.15 mm	300 °C	-150 °C	Copper Nickel Coated	600 V	19	0.0117 in	Hook-Up	16 AWG		UL Style 11540	1000 ft	304.8 m	0.069 in	1.75 mm	Chemical Resistant High Temperature UV Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

2916 Series

16 AWG Hook-Up Wire 19/0.0117" White 600V 1000.0' (304.8m)
