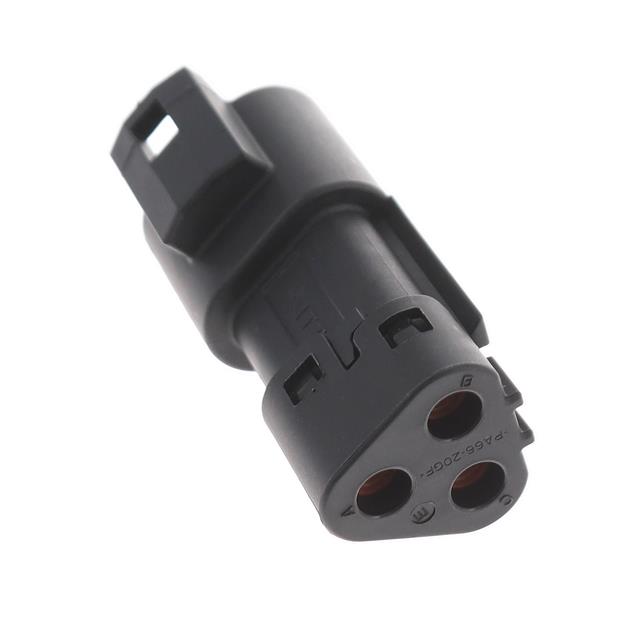

IT04-3P-004

Active

ITT Cannon, LLC

CONN RCPT HSG 3POS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT HSG 3POS

Technical Specifications

Parameters and characteristics for this part

Specification	IT04-3P-004

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	IP69K, IP67, Cap (Cover), Sealed, IP68
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Insulation Material	Mounting Type	Contact Type	Contact Termination	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Color	Number of Rows
ITT Cannon, LLC IT04-3P-004-N	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Male Pin	Crimp	Receptacle	Latch Holder	-55 °C	125 °C	Cap (Cover) IP67 IP68 IP69K Sealed	Black	2
ITT Cannon, LLC IT04-3P-002	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Male Pin	Crimp	Receptacle	Latch Holder	-55 °C	125 °C		Gray	2
ITT Cannon, LLC IT04-3P-000-N	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Male Pin	Crimp	Receptacle	Latch Holder	-55 °C	125 °C	Cap (Cover) IP67 IP68 IP69K Sealed	Gray	2
ITT Cannon, LLC IT04-3P-006-N	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Male Pin	Crimp	Receptacle	Latch Holder	-55 °C	125 °C		Black	2
ITT Cannon, LLC IT04-3P-000	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Male Pin	Crimp	Receptacle	Latch Holder	-55 °C	125 °C	Cap (Cover) IP67 IP68 IP69K Sealed	Gray	2
ITT Cannon, LLC IT04-3P-006	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Male Pin	Crimp	Receptacle	Latch Holder	-55 °C	125 °C		Black	2
ITT Cannon, LLC IT04-3P-004	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Male Pin	Crimp	Receptacle	Latch Holder	-55 °C	125 °C	Cap (Cover) IP67 IP68 IP69K Sealed	Black	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Receptacle Black

Technical documentation and resources
