AX01R080VANBR200
ActiveJAE Electronics

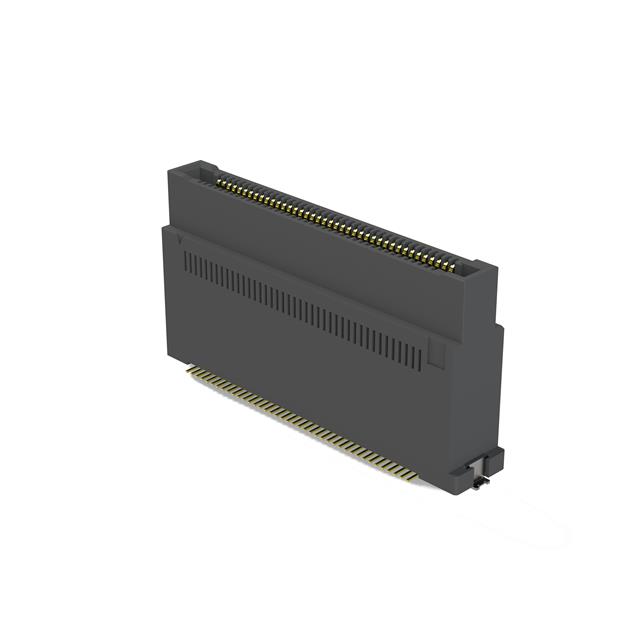

RIGID SIDE B2B CONNECTOR, 80 POS
Deep-Dive with AI
Search across all available documentation for this part.
AX01R080VANBR200
ActiveJAE Electronics
RIGID SIDE B2B CONNECTOR, 80 POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AX01R080VANBR200 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Board Guide |
| Height Above Board | 0.654 in |
| Height Above Board | 16.6 mm |
| Mated Stacking Heights [Max] | 30 mm |
| Mated Stacking Heights [Min] | 8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
