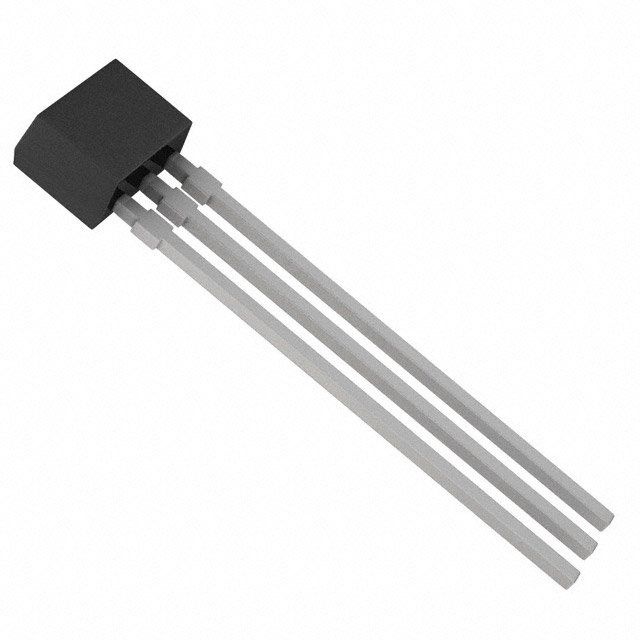

UNR412400A

Obsolete

Panasonic Industrial Automation Sales

TRANS PREBIAS PNP 50V NS-A1

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

TRANS PREBIAS PNP 50V NS-A1

Technical Specifications

Parameters and characteristics for this part

Specification	UNR412400A

Current - Collector (Ic) (Max) [Max]	500 mA
Current - Collector Cutoff (Max) [Max]	1 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	60
Frequency - Transition	200 MHz
Mounting Type	Through Hole
Package / Case	3-SSIP
Resistor - Base (R1)	2.2 kOhm
Resistor - Emitter Base (R2)	10 kOhms
Supplier Device Package	NS-A1
Transistor Type	PNP - Pre-Biased
Vce Saturation (Max) @ Ib, Ic	250 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Package / Case	Current - Collector Cutoff (Max) [Max]	Resistor - Base (R1)	Resistor - Emitter Base (R2)	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Mounting Type	Transistor Type	Supplier Device Package
Panasonic Industrial Automation Sales UNR412400A	500 mA	50 V	250 mV	3-SSIP	1 µA	2.2 kOhm	10 kOhms	200 MHz	60	Through Hole	PNP - Pre-Biased	NS-A1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased 50 V 500 mA 200 MHz 300 mW Through Hole NS-A1
