MMBT7002KW-AQ
ActiveDiotec Semiconductor

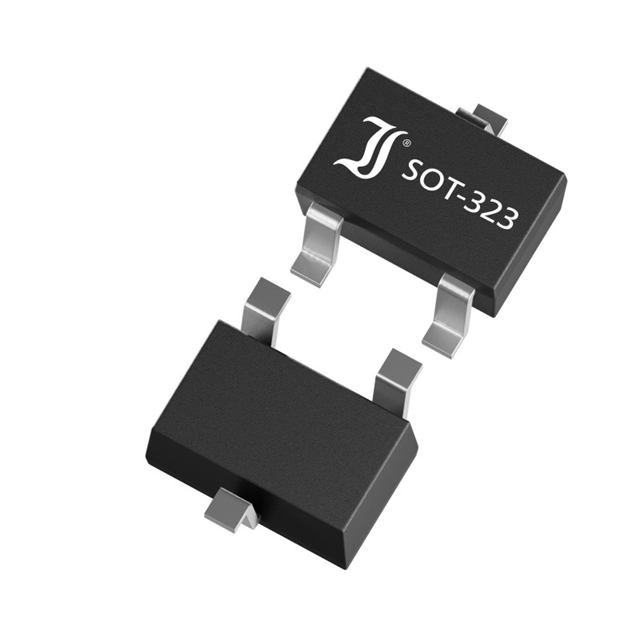

MOSFET SOT-323 N 60V 0.3A 1.6? 1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MMBT7002KW-AQ |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 300 mA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6-VSSOP, SC-88, SOT-363 |
| Qualification | AEC-Q101 |
| Rds On (Max) @ Id, Vgs [Max] | 4 Ohm |
| Supplier Device Package | SOT-363 |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 2.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.23 | |
| 10 | $ 0.16 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.04 | |||
| Digi-Reel® | 1 | $ 0.23 | ||
| 10 | $ 0.16 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.04 | |||
| Tape & Reel (TR) | 3000 | $ 0.04 | ||
| 6000 | $ 0.04 | |||
| 9000 | $ 0.03 | |||
| 30000 | $ 0.03 | |||
| 75000 | $ 0.03 | |||
| 150000 | $ 0.02 | |||
Description
General part information
MMBT7002 Series
300mA (Ta) Surface Mount SOT-363
