Q-0204B0001024i

Active

Amphenol Custom Cable

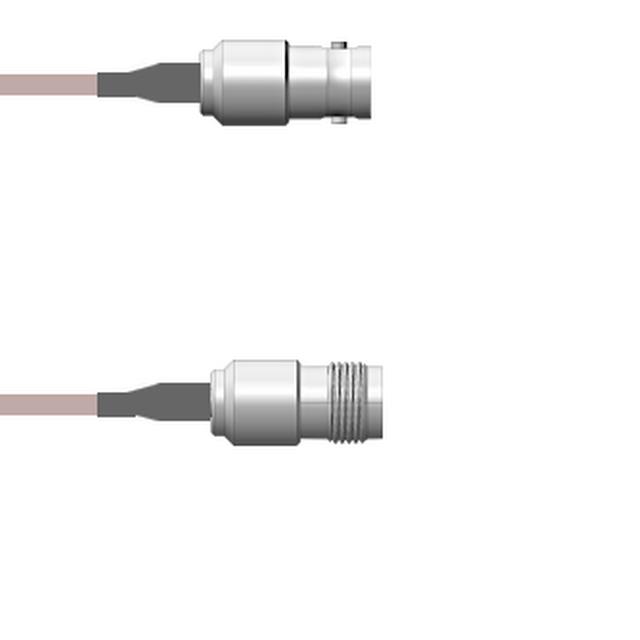

CBL ASSY BNC-TNC JACK-JACK 24"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JACK-JACK 24"

Technical Specifications

Parameters and characteristics for this part

Part	Color	1st Connector	Frequency - Max [Max]	2nd Contact Gender	1st Connector Mounting Type	1st Contact Gender	Cable Type	Features	Style	Overall Impedance	2nd Connector	Length [x]	Length [x]	2nd Connector Mounting Type	Length	Length	Length
Amphenol Custom Cable Q-0204B0001.25M	Copper	BNC Jack	4 GHz	Female	Free Hanging (In-Line)	Female	RG-178	Shielded	BNC to TNC	50 Ohms	TNC Jack	9.843 "	250 mm	Free Hanging (In-Line)
Amphenol Custom Cable Q-0204B00012.5M	Copper	BNC Jack	4 GHz	Female	Free Hanging (In-Line)	Female	RG-178	Shielded	BNC to TNC	50 Ohms	TNC Jack			Free Hanging (In-Line)	8.2 '	98.4 in	2.5 m
Amphenol Custom Cable Q-0204B0001009i	Copper	BNC Jack	4 GHz	Female	Free Hanging (In-Line)	Female	RG-178	Shielded	BNC to TNC	50 Ohms	TNC Jack			Free Hanging (In-Line)		9 "	228.6 mm
Amphenol Custom Cable Q-0204B0001108i	Copper	BNC Jack	4 GHz	Female	Free Hanging (In-Line)	Female	RG-178	Shielded	BNC to TNC	50 Ohms	TNC Jack			Free Hanging (In-Line)	9 ft	108 in	2.7 m
Amphenol Custom Cable Q-0204B0001024i	Copper	BNC Jack	4 GHz	Female	Free Hanging (In-Line)	Female	RG-178	Shielded	BNC to TNC	50 Ohms	TNC Jack			Free Hanging (In-Line)		24 "	609.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to TNC RG-178 24.00" (609.60mm)

Technical documentation and resources

No documents available
