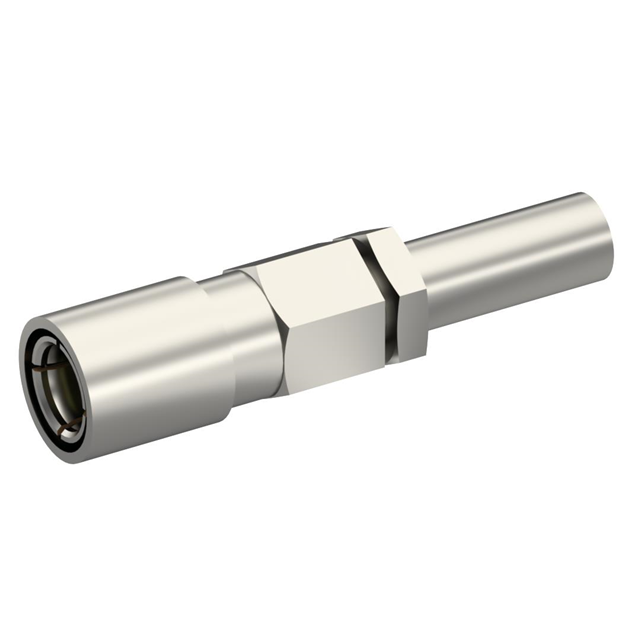

2002-7571-003

Active

Radiall USA, Inc.

SMB F STR NA CR 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB F STR NA CR 2.6/50S

Technical Specifications

Parameters and characteristics for this part

Specification	2002-7571-003

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Frequency - Max [Max]	Center Contact Material	Insertion Loss	Dielectric Material	Voltage Rating	Contact Termination	Mating Cycles	Body Material	Mounting Type	Number of Ports	Cable Group	Cable Group	Body Finish	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Housing Color	Impedance	Fastening Type	Connector Style	Connector Type
Radiall USA, Inc. 2002-7571-002	4 GHz	Beryllium Copper	0.3 dB	Polytetrafluoroethylene (PTFE)	250 VDC	Crimp	500	Brass	Free Hanging (In-Line)	1	196	RG-178	Nickel	Crimp	-65 ░C	165 °C	Gold	Silver	50 Ohms	Snap-On	SMB	Female Socket Plug
Radiall USA, Inc. 2002-7571-003	4 GHz	Beryllium Copper		Polytetrafluoroethylene (PTFE)	335 V	Crimp	500	Brass	Free Hanging (In-Line)	1		316 RG-174	Nickel	Crimp	-65 ░C	165 °C	Gold	Silver	50 Ohms	Snap-On	SMB	Female Socket Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
