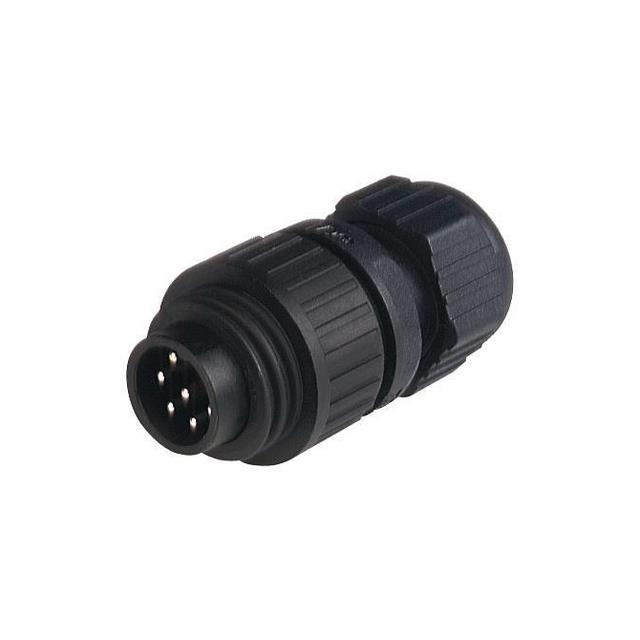

CA 6 LS RED

Active

HIRSCHMANN

CONN RCPT MALE 7P SOLDER CUP

Search across all available documentation for this part.

Active

HIRSCHMANN

CONN RCPT MALE 7P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	CA 6 LS RED

Applications	Industrial
Backshell Material, Plating	Nylon 6/6, Polyamide (PA66), Glass Filled
Cable Opening [custom]	0.472 in, 0.236 in
Cable Opening [custom]	12 mm
Cable Opening [custom]	6 mm
Color	Black, Red
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Current Rating (Amps)	10 A
Features	Strain Relief, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	1
Number of Positions [custom]	6
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Shielding	Unshielded
Voltage Rating	250 VAC

Part	Mounting Type	Connector Type	Primary Material	Material Flammability Rating	Color	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Features	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Contact Finish - Mating	Current Rating (Amps)	Ingress Protection	Backshell Material, Plating	Orientation	Shielding	Insert Material	Number of Positions [custom]	Number of Positions [custom]	Voltage Rating
HIRSCHMANN CA 6 LS RED	Free Hanging (In-Line)	Male Pins Receptacle	Plastic	UL94 V-0	Black Red	Industrial	90 °C	-40 °C	Polyamide (PA66) Nylon 6/6 Glass Filled	Backshell Strain Relief	0.236 in 0.472 in	12 mm	6 mm	Silver	10 A	IP67 - Dust Tight Waterproof	Glass Filled Nylon 6/6 Polyamide (PA66)	Keyed	Unshielded	Glass Filled Nylon 6/6 Polyamide (PA66)	1	6	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 (6 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup
