VS-30EPH03-N3
ActiveVishay General Semiconductor - Diodes Division
DIODE GP 300V 30A TO247AC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VS-30EPH03-N3
ActiveVishay General Semiconductor - Diodes Division
DIODE GP 300V 30A TO247AC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VS-30EPH03-N3 |
|---|---|
| Current - Average Rectified (Io) | 30 A |
| Current - Reverse Leakage @ Vr | 60 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -65 C |

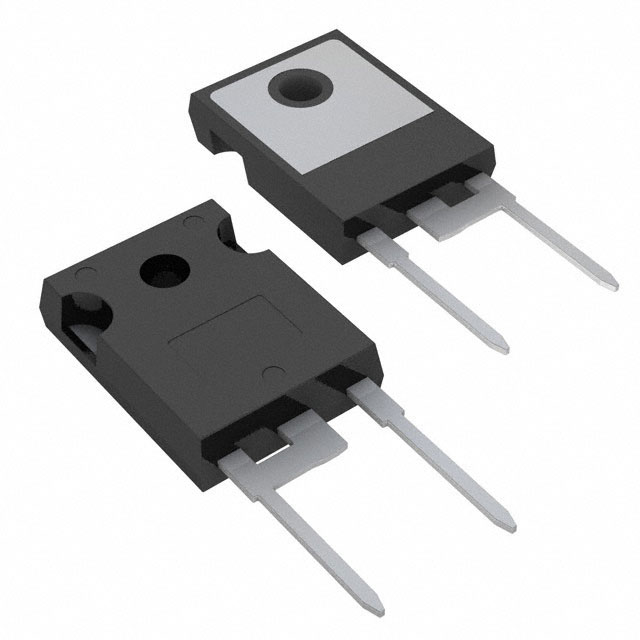

| Package / Case | TO-247-2 |
| Reverse Recovery Time (trr) | 38 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | TO-247AC Modified |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 300 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.95 | |
| 25 | $ 4.72 | |||
| 100 | $ 4.04 | |||
| 500 | $ 3.59 | |||
| 1000 | $ 3.08 | |||
| 2000 | $ 2.90 | |||
Description
General part information
30EPH03 Series
Diode 300 V 30A Through Hole TO-247AC Modified
