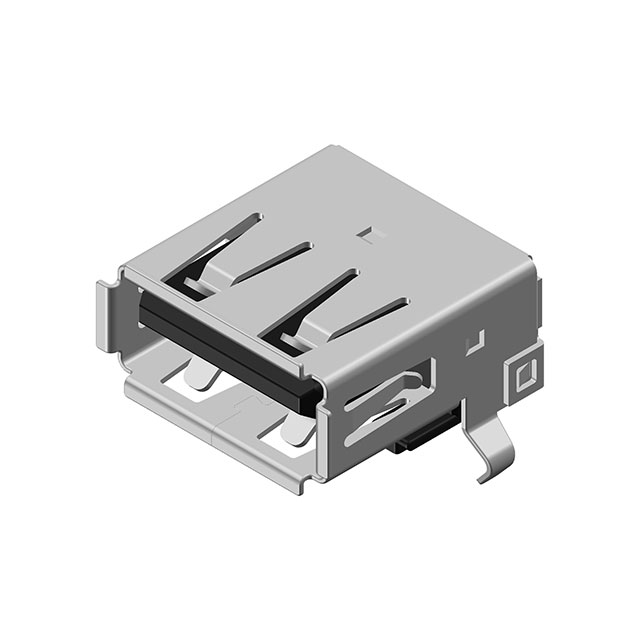

CU01SAH1S00-NH

Active

Cvilux USA

USB TYPE-A SINGLE PORT RIGHT ANG

Search across all available documentation for this part.

Active

Cvilux USA

USB TYPE-A SINGLE PORT RIGHT ANG

Technical Specifications

Parameters and characteristics for this part

Specification	CU01SAH1S00-NH

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

Part	Number of Ports	Shielding	Connector Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Insulation Color	Voltage - Rated	Contact Finish	Number of Contacts [custom]	Termination	Mounting Type	Specifications	Gender
Cvilux USA CU01SAH1S00-NH	1	Shielded	USB-A (USB TYPE-A)	UL94 V-0	-40 °C	60 °C	Horizontal	Black	30 VAC	Gold	4	Solder	Through Hole Right Angle	USB 2.0	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
