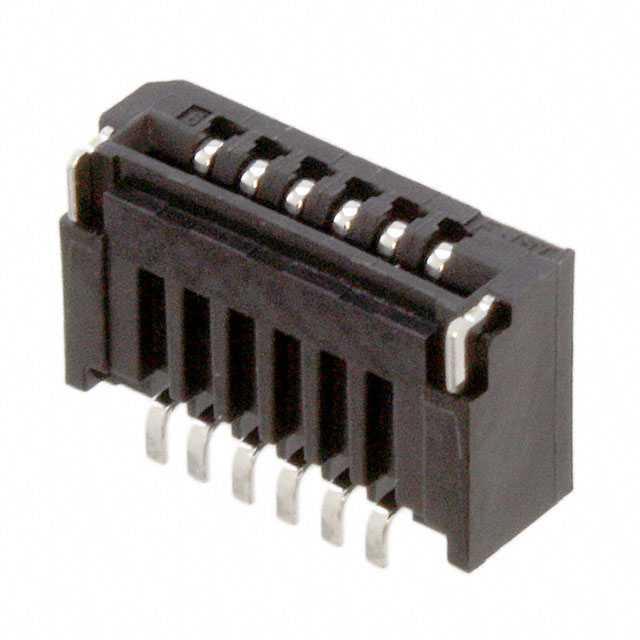

06FMN-SMT-A-TF

Active

JST Sales America Inc.

CONN FFC TOP 6POS 1MM R/A

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN FFC TOP 6POS 1MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	06FMN-SMT-A-TF

Cable End Type	Straight
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Low Insertion Force (LIF)
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC
Height Above Board	0.118 in
Height Above Board	3 mm
Housing Color	Black
Housing Material	Polyamide (PA6T), Nylon 6T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	50 V

Part	Material Flammability Rating	Current Rating (Amps)	Pitch [x]	Pitch [x]	Number of Positions	Housing Color	Cable End Type	FFC, FCB Thickness	Contact Finish	Flat Flex Type	Termination	Connector/Contact Type	Mounting Type	Contact Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Height Above Board	Height Above Board	Housing Material
JST Sales America Inc. 06FMN-SMT-A-TF	UL94 V-0	0.5 A	0.039 in	1 mm	6	Black	Straight	0.3 mm	Tin	FFC	Solder	Contacts Top	Surface Mount Right Angle	Phosphor Bronze	50 V	-25 °C	85 °C	Low Insertion Force (LIF)	0.118 in	3 mm	Polyamide (PA6T) Nylon 6T

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position FFC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
