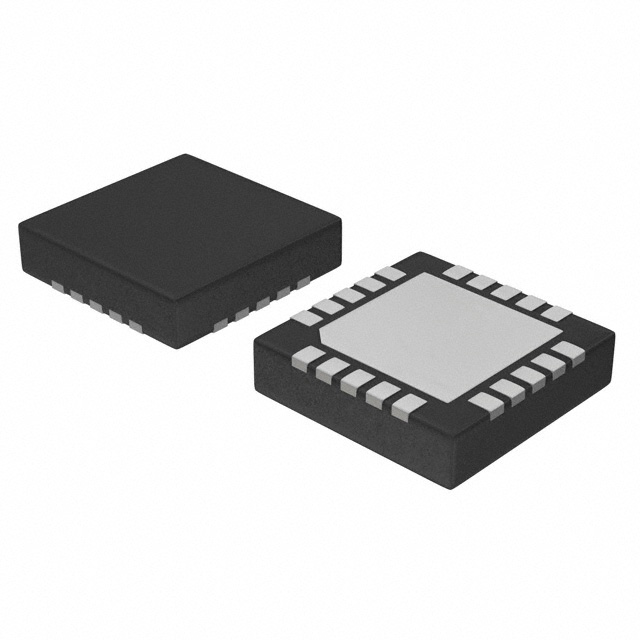

MC100EP17MNG

Obsolete

ON Semiconductor

IC RCVR/DRVR QUAD DIFF ECL 20QFN

Search across all available documentation for this part.

Obsolete

ON Semiconductor

IC RCVR/DRVR QUAD DIFF ECL 20QFN

Technical Specifications

Parameters and characteristics for this part

Specification	MC100EP17MNG

Logic Type	Differential Receiver/Driver
Mounting Type	Surface Mount
Number of Bits	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	20-VFQFN Exposed Pad
Supplier Device Package	20-QFN (4x4)
Supply Voltage [Max]	5.5 V
Supply Voltage [Min]	3 V

Part	Number of Bits	Logic Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supply Voltage [Min]	Supply Voltage [Max]	Package / Case	Package / Case [y]	Package / Case [y]	Supplier Device Package
ON Semiconductor MC100EP17DW	4	Differential Receiver/Driver	85 °C	-40 °C	Surface Mount	3 V	5.5 V	20-SOIC	0.295 in	7.5 mm	20-SOIC
ON Semiconductor MC100EP17MNG	4	Differential Receiver/Driver	85 °C	-40 °C	Surface Mount	3 V	5.5 V	20-VFQFN Exposed Pad			20-QFN (4x4)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Differential Receiver/Driver IC 20-QFN (4x4)
