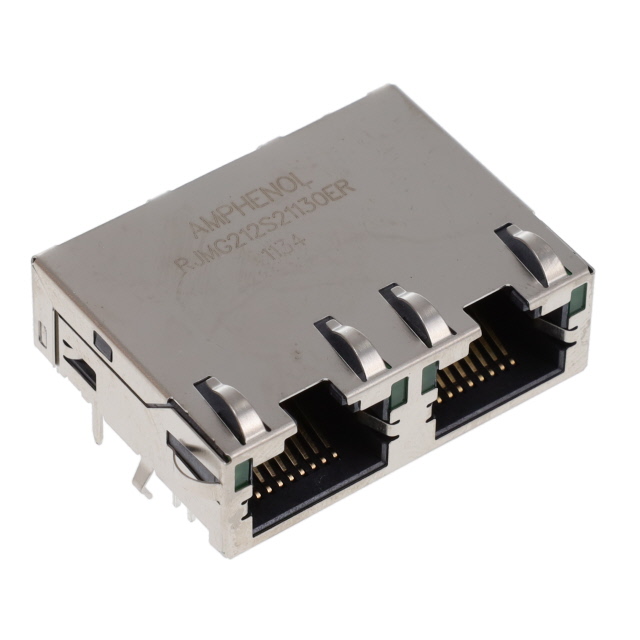

RJMG212S21130ER
ActiveAmphenol ICC (Commercial Products)
RJMG212S21130ER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RJMG212S21130ER
ActiveAmphenol ICC (Commercial Products)
RJMG212S21130ER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RJMG212S21130ER |
|---|---|
| Applications | AutoMDIX, 10/100/1000 Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Features | Filter |
| Height Above Board | 9.55 mm |
| Height Above Board [z] | 0.376 in |
| Housing Material | Liquid Crystal Polymer (LCP) |
| LED Color | Green - Green |
| Mounting Type | Through Hole, Board Edge |
| Number of Ports | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Orientation | 90 ° |
| Shield Material | Stainless Steel |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Up |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.27 | |
| 10 | $ 4.76 | |||
| 35 | $ 4.50 | |||
| 70 | $ 4.39 | |||
| 105 | $ 4.17 | |||
| 245 | $ 3.86 | |||
Description
General part information
RJMG212 Series
2 Port RJ45Board Edge, Through Hole 10/100/1000 Base-T, AutoMDIX
