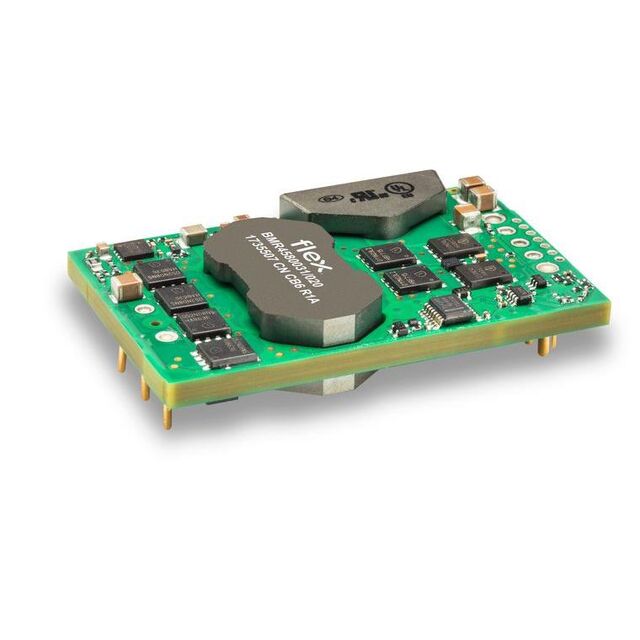

BMR4580012/002

Active

Flex Power Modules

DC DC CONVERTER 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BMR4580012/002

Active

Flex Power Modules

DC DC CONVERTER 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BMR4580012/002

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Size / Dimension [x]	57.9 mm
Size / Dimension [x]	2.28 in
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	0.44 "
Size / Dimension [z]	11.2 mm
Standard Number	62368-1
Supplier Device Package	Quarter Brick
Type	Isolated Module, Digital
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

BMR458 Series

Part	Voltage - Input (Min) [Min]	Package / Case	Standard Number	Supplier Device Package	Features	Power (Watts)	Voltage - Isolation	Voltage - Input (Max) [Max]	Number of Outputs	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Applications	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Current - Output (Max) [Max]	Type	Efficiency	Voltage - Output 1
Flex Power Modules BMR4580002/014	36 V	Quarter Brick	62368-1	Quarter Brick	Adjustable Output Load Sharing PMBus™ Remote On/Off Remote Sense	623 W	2250 VDC	75 V	1	Through Hole	0.44 "	1.45 in	36.8 mm	11.2 mm	57.9 mm	2.28 in	ITE (Commercial)	Active Low Enable	125 °C	-40 °C	CB CSA IEC TUV UL	50 A	Intermediate Bus Converter Digital	96.4 %
Flex Power Modules BMR4580002/003	36 V	Quarter Brick	62368-1	Quarter Brick	Adjustable Output PMBus™ Remote On/Off Remote Sense	600 W	2250 VDC	75 V	1	Through Hole	0.44 "	1.45 in	36.8 mm	11.2 mm	57.9 mm	2.28 in	ITE (Commercial)	Active Low Enable	125 °C	-40 °C	CB CSA IEC TUV UL	50 A	Intermediate Bus Converter Digital	96.4 %	12 V
Flex Power Modules BMR4580011/017	40 V	Quarter Brick	62368-1	Quarter Brick	Adjustable Output Load Sharing PMBus™ Remote On/Off Remote Sense	670 W	2250 VDC	60 V	1	Through Hole	0.44 "	1.45 in	36.8 mm	11.2 mm	57.9 mm	2.28 in	ITE (Commercial)	Active Low Enable	125 °C	-40 °C	CB CSA IEC TUV UL	54.2 A	Intermediate Bus Converter Digital	96.6 %
Flex Power Modules BMR4580011/002	40 V	Quarter Brick	62368-1	Quarter Brick	Adjustable Output PMBus™ Remote On/Off Remote Sense	650 W	2250 VDC	60 V	1	Through Hole	0.44 "	1.45 in	36.8 mm	11.2 mm	57.9 mm	2.28 in	ITE (Commercial)	Active Low Enable	125 °C	-40 °C	CB CSA IEC TUV UL	54.2 A	Intermediate Bus Converter Digital	96.6 %	12 V
Flex Power Modules BMR4580111/002	40 V	Quarter Brick	62368-1	Quarter Brick	Adjustable Output Baseplate PMBus™ Remote On/Off Remote Sense	650 W	2250 VDC	60 V	1	Through Hole	0.52 "	1.45 in	36.8 mm	13.2 mm	57.9 mm	2.28 in	ITE (Commercial)	Active Low Enable	125 °C	-40 °C	CB CSA IEC TUV UL	54.2 A	Intermediate Bus Converter Digital		12 V
Flex Power Modules BMR4580112/002	40 V	Quarter Brick	62368-1	Quarter Brick	Adjustable Output Baseplate Remote On/Off Remote Sense	650 W	2250 VDC	60 V	1	Through Hole	0.52 "	1.45 in	36.8 mm	13.2 mm	57.9 mm	2.28 in	ITE (Commercial)	Active Low Enable	125 °C	-40 °C	CB CSA IEC TUV UL	54.2 A	Intermediate Bus Converter Digital	96.6 %	12 V
Flex Power Modules BMR4580012/002	36 V	Quarter Brick	62368-1	Quarter Brick	Adjustable Output PMBus™ Remote On/Off Remote Sense		2250 VDC	75 V	1	Through Hole	0.44 "	1.45 in	36.8 mm	11.2 mm	57.9 mm	2.28 in	ITE (Commercial)	Active Low Enable	125 °C	-40 °C	CB CSA IEC TUV UL		Isolated Module Digital		12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 100.11

Description

General part information

BMR458 Series

Isolated Module, Digital DC DC Converter 1 Output 12V 36V - 75V Input
