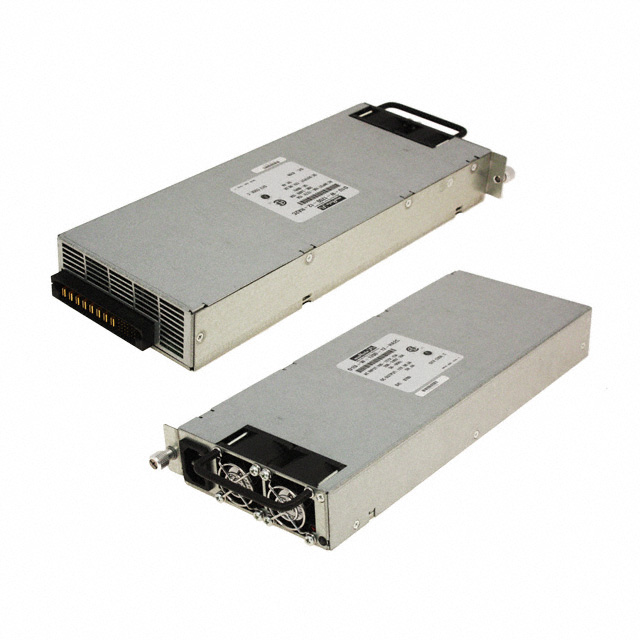

D1U-W-1200-12-HC2C

Obsolete

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 1200W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 1200W

Technical Specifications

Parameters and characteristics for this part

Specification	D1U-W-1200-12-HC2C

Applications	ITE (Commercial)
Current - Output 1	98.3 A
Efficiency	90.6 %
Features	I2C Interface, Hot Swappable, Load Sharing, Standby Output, Remote Sense, PFC, Universal Input
Mounting Type	Rack Mount
Number of Outputs	1
Power (Watts)	1200 W
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 1	Power (Watts)	Features	Mounting Type	Efficiency	Number of Outputs	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Applications	Approval Agency	Type	Voltage - Isolation
Murata Power Solutions Inc. D1U-W-1200-48-HC2C	140 VAC 264 VAC	90 VAC 180 VAC	24.6 A	1200 W	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	Rack Mount	90 %	1	48 V	12 in	4.75 in	41 mm	1.6 "	120.7 mm	304.8 mm	ITE (Commercial)	cCSAus CE TUV	Front End	3000 V
Murata Power Solutions Inc. D1U-W-1600-12-HA2C	140 VAC 264 VAC	90 VAC 180 VAC	131.6 A	1600 W	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	Rack Mount	90 %	1	12 V	12 in	4.75 in	41 mm	1.6 "	120.7 mm	304.8 mm	ITE (Commercial)	cCSAus CE TUV	Front End	3000 V
Murata Power Solutions Inc. D1U-W-2000-48-HA2C	264 VAC	90 VAC	41.3 A	2000 W	Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input	Rack Mount	90.6 %	1	48 V							ITE (Commercial)	cCSAus CE TUV	Front End	3000 V
Murata Power Solutions Inc. D1U-W-1200-12-HC2C	264 VAC	90 VAC	98.3 A	1200 W	Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input	Rack Mount	90.6 %	1	12 V							ITE (Commercial)		Front End	3000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
