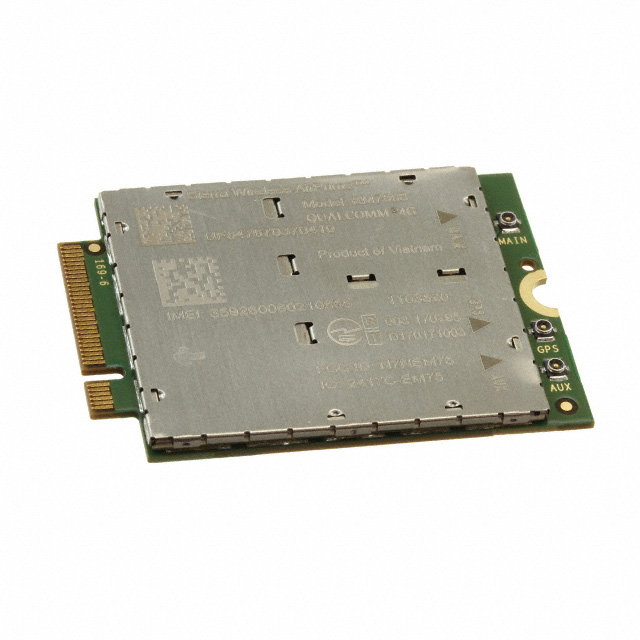

EM7565_1103520

Active

Semtech Corporation

RF TXRX MOD CELLULAR CARD EDGE

Search across all available documentation for this part.

Active

Semtech Corporation

RF TXRX MOD CELLULAR CARD EDGE

Technical Specifications

Parameters and characteristics for this part

Specification	EM7565_1103520

Data Rate	600 Mbps
Mounting Type	Card Edge
Package / Case	Module
Protocol	GLONASS, GNSS, Galileo, 4G LTE CAT-12 (AT&T/Verizon), Beidou, HSPA+, GPS
RF Family/Standard	Cellular
Serial Interfaces	M.2
Serial Interfaces	USB

Part	Utilized IC / Part	Protocol	Serial Interfaces	Data Rate	Mounting Type	RF Family/Standard	Antenna Type	Package / Case	Serial Interfaces	Serial Interfaces
Semtech Corporation EM7565_1105061	EM7565	Beidou Galileo GLONASS GNSS GPS HSPA LTE	PCIe USB	600 Mbps	Card Edge	Cellular Navigation	Antenna Not Included	Module
Semtech Corporation EM7565_1103520		4G LTE CAT-12 (AT&T/Verizon) Beidou Galileo GLONASS GNSS GPS HSPA+		600 Mbps	Card Edge	Cellular		Module	M.2	USB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cellular 4G LTE CAT-12 (AT&T/Verizon), Beidou, Galileo, GLONASS, GNSS, GPS, HSPA+ Transceiver Module Card Edge
