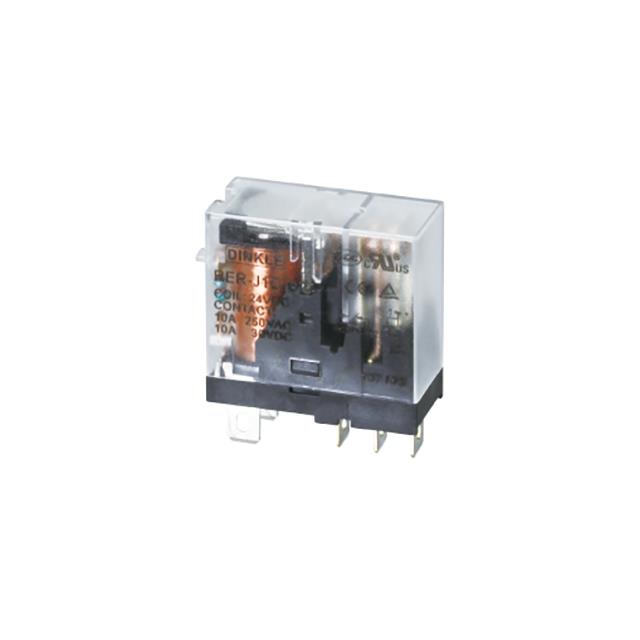

RER-J1C-A120
ActiveDinkle Corporation, USA
RELAY GEN PURPOSE SPDT 10A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RER-J1C-A120 |
|---|---|
| Coil Current | 7.6 mA |
| Coil Resistance | 4.43 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 120 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 10 A |
| Features | Lighted Indicator |
| Mounting Type | Socketable |
| Must Operate Voltage | 96 VAC |
| Must Release Voltage | 36 VAC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.79 | |
| 10 | $ 17.84 | |||
| 50 | $ 15.46 | |||
| 100 | $ 14.27 | |||
| 200 | $ 13.08 | |||
| 500 | $ 11.89 | |||
| 1000 | $ 10.71 | |||
Description
General part information
RER-J1 Series
General Purpose Relay SPDT (1 Form C) 120VAC Coil Socketable
