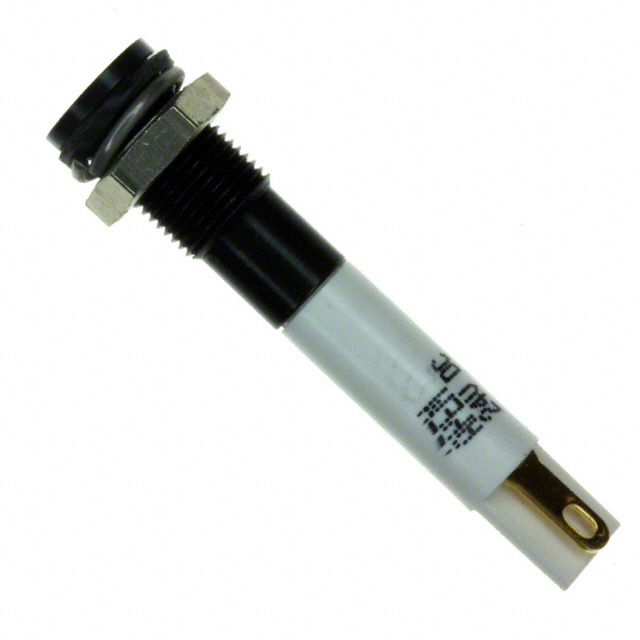

Q6F1BXXW24E
ActiveAPEM
INDICATOR 24V 6MM FLUSH WHITE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q6F1BXXW24E
ActiveAPEM
INDICATOR 24V 6MM FLUSH WHITE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q6F1BXXW24E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | White |
| Lens Color | White |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Transparency | Diffused |
| Millicandela Rating | 220 mcd |
| Panel Cutout Dimensions | 6.1 mm |
| Panel Cutout Dimensions | 0.24 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Solder Lug |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 13.44 | |
Description
General part information
Q6F1BXXW Series
LED Panel Indicator White Diffused 100° 24V 20mA Solder Lug
