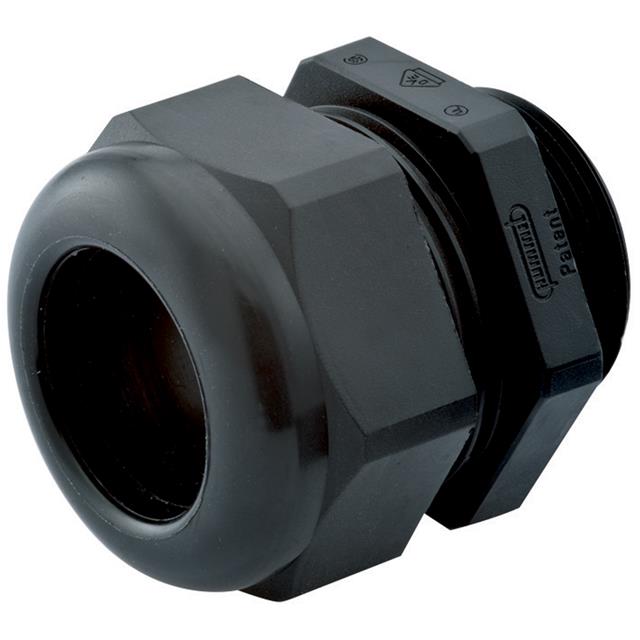

CD16AA-BK

Active

Hummel AG

CABLE GLAND 9.91-13.97MM PG16

Search across all available documentation for this part.

Active

Hummel AG

CABLE GLAND 9.91-13.97MM PG16

Technical Specifications

Parameters and characteristics for this part

Specification	CD16AA-BK

Color	Black
Ingress Protection	IP69K, IP68, NEMA 6
Material	Polyamide (PA66), Nylon 6/6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.55 in
Outside Cable Diameter (Max) [Max] [diameter]	13.97 mm
Outside Cable Diameter (Min) [Min] [diameter]	9.91 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.39 in
Thread Length	0.39 in
Thread Length	9.91 mm
Thread Size	PG16
Type	Cable Gland

Part	Material	Ingress Protection	Color	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Hummel AG CD16AA-BK	Polyamide (PA66) Nylon 6/6	IP68 IP69K NEMA 6	Black	0.39 in	9.91 mm	9.91 mm	0.39 in	PG16	100 °C	-40 °C	Cable Gland	0.55 in	13.97 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA66), Nylon 6/6 PG16 Black
