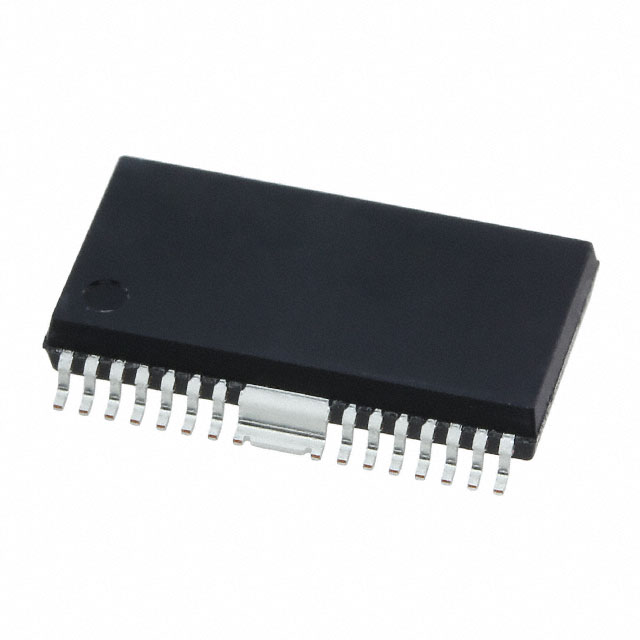

LB1980H-MPB-E

Obsolete

Sanyo

3-PHASE BRUSHLESS MOTOR DRIVER

Search across all available documentation for this part.

Obsolete

Sanyo

3-PHASE BRUSHLESS MOTOR DRIVER

Technical Specifications

Parameters and characteristics for this part

Specification	LB1980H-MPB-E

Applications	Media Player
Current - Output	1.3 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - AC, DC	Brushless DC (BLDC)
Mounting Type	Surface Mount
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 °C
Output Configuration	Half Bridge (3)
Package / Case	2 Heat Tabs, 28-SOP, Exposed Pad
Package / Case [custom]	0.311 in
Package / Case [custom]	7.9 mm
Supplier Device Package	28-HSOP-H
Technology	Bipolar
Voltage - Load [Max]	22 V
Voltage - Load [Min]	5 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Function	Package / Case [custom]	Package / Case [custom]	Package / Case	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Interface	Technology	Voltage - Load [Max]	Voltage - Load [Min]	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Configuration	Motor Type - AC, DC	Current - Output
Sanyo LB1980H-MPB-E	Driver - Fully Integrated Control and Power Stage	0.311 in	7.9 mm	2 Heat Tabs 28-SOP Exposed Pad	Media Player	75 °C	-20 °C	28-HSOP-H	Parallel	Bipolar	22 V	5 V	Surface Mount	4.5 V	5.5 V	Half Bridge (3)	Brushless DC (BLDC)	1.3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	110	$ 2.75

General part information

Motor Driver Bipolar Parallel 28-HSOP-H

Technical documentation and resources

No documents available
