315012-01

Active

Qualtek

CRD 16AWG IEC320-C13 - CBL 9.84'

Search across all available documentation for this part.

Active

Qualtek

CRD 16AWG IEC320-C13 - CBL 9.84'

Technical Specifications

Parameters and characteristics for this part

Specification	315012-01

1st Connector	IEC 320-C13
2nd Connector	Cable
Approval Agency Marking	UL, cUL
Approved Countries	United States, Canada
Color	Black
Cord Type	SJT
Current Rating (Amps)	13 A
Length [x]	9.84 ft
Length [x]	3 m
Number of Conductors	3
Operating Temperature	60 °C
Shielding	Unshielded
Style	Female Sockets (Slots) to Leads
Voltage Rating	125 VAC
Wire Gauge	16 AWG

Part	Wire Gauge	Approval Agency Marking	2nd Connector	Style	Length [x]	Length [x]	Current Rating (Amps)	Voltage Rating	Cord Type	Color	Shielding	Approved Countries	1st Connector	Number of Conductors	Operating Temperature
Qualtek 315012-01	16 AWG	cUL UL	Cable	Female Sockets (Slots) to Leads	9.84 ft	3 m	13 A	125 VAC	SJT	Black	Unshielded	Canada United States	IEC 320-C13	3	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

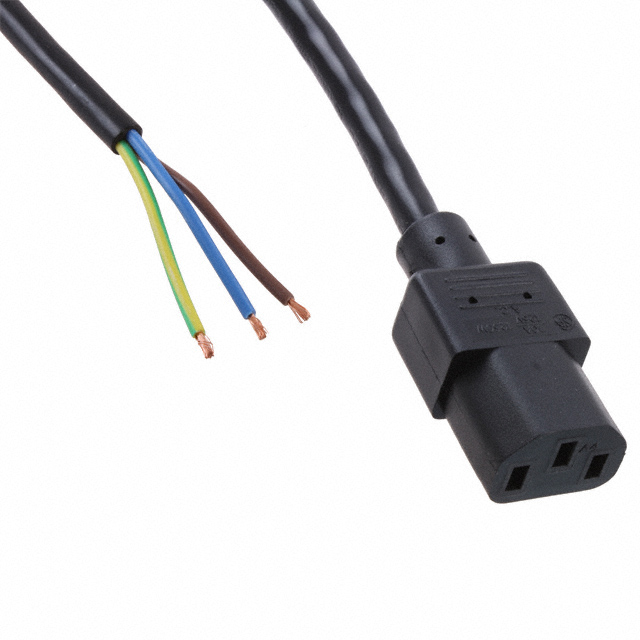

9.84' (3.00m) Power Cord Black IEC 320-C13 To Cable SJT
