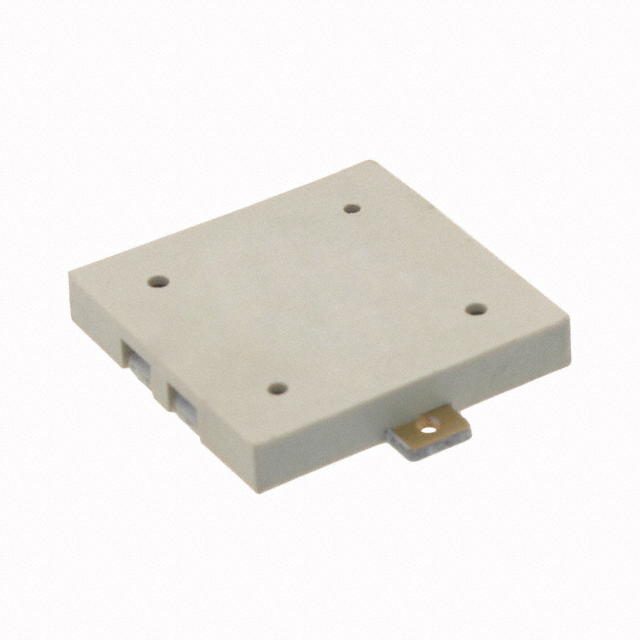

CMT-1603-SMT-TR
ActiveCUI Devices
BUZZER PIEZO 3V 16X16MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMT-1603-SMT-TR
ActiveCUI Devices
BUZZER PIEZO 3V 16X16MM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMT-1603-SMT-TR |
|---|---|
| Current - Supply | 3 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 4 kHz |
| Input Type | Peak-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Port Location | Side |
| Size / Dimension [x] | 0.63 " |
| Size / Dimension [x] | 16 mm |
| Size / Dimension [y] | 16 mm |
| Size / Dimension [y] | 0.63 in |
| Sound Pressure Level (SPL) | 70 dB |
| Technology | Piezo |
| Termination | Solder Pads |
| Voltage - Rated | 3 VDC |
| Voltage Range [Max] | 25 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.91 | |
| 10 | $ 1.55 | |||
| 25 | $ 1.43 | |||
| 50 | $ 1.35 | |||
| 100 | $ 1.27 | |||
| 250 | $ 1.17 | |||
| 500 | $ 1.10 | |||
| Digi-Reel® | 1 | $ 1.91 | ||
| 10 | $ 1.55 | |||
| 25 | $ 1.43 | |||
| 50 | $ 1.35 | |||
| 100 | $ 1.27 | |||
| 250 | $ 1.17 | |||
| 500 | $ 1.10 | |||
| Tape & Reel (TR) | 1000 | $ 1.04 | ||
| 2000 | $ 0.99 | |||
Description
General part information
CMT-1603 Series
Buzzers Transducer, Externally Driven Piezo 3 V 3mA 4kHz 70dB @ 3V, 10cm Surface Mount Solder Pads
