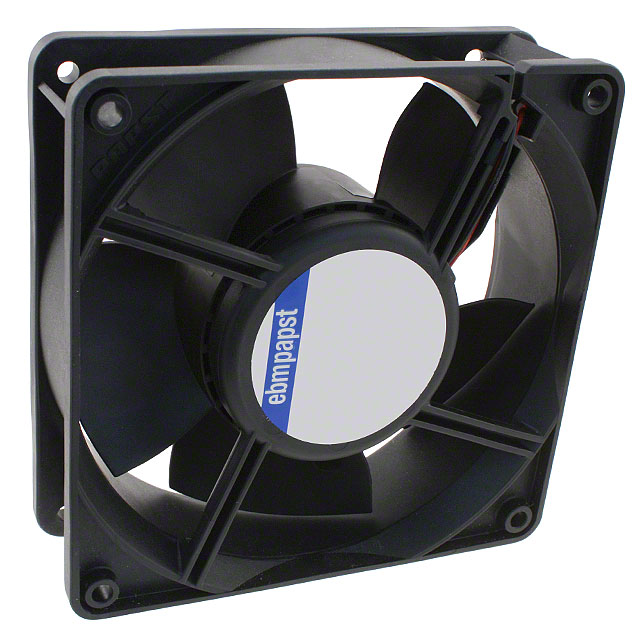

4218H

Obsolete

ebm-papst Inc.

FAN AXIAL 119X38MM 48VDC TERM

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

FAN AXIAL 119X38MM 48VDC TERM

Technical Specifications

Parameters and characteristics for this part

Specification	4218H

Air Flow	3.03 mł/min
Air Flow	108.3 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	49 dB
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	5.6 W
RPM	3400 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	2 Terminals
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	56 VDC
Voltage Range [Min]	36 VDC
Weight	0.639 lb
Weight	289.85 g
Width [y]	38 mm

Part	Features	Bearing Type	Width [y]	Voltage Range [Min]	Voltage Range [Max]	Termination	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated [custom]	Weight	Weight	Material - Frame	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Material - Blade	Power (Watts)	Lifetime @ Temp.	Noise	Approval Agency	Air Flow	Air Flow	Fan Type	RPM	Operating Temperature [Max]
ebm-papst Inc. 4218/2	Speed Sensor (Tach)	Ball	38 mm	36 VDC	56 VDC	3 Wire Leads	119 mm	119 mm	48 VDC	0.639 lb	289.85 g	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	-20 C	-20 °C	75 ░C	75 °C	Fiberglass Reinforced Nylon Polyamide (PA)	4.3 W	62500 Hrs	45 dB(A)	CE CSA UL VDE	97 CFM	2.72 mł/min	Tubeaxial
ebm-papst Inc. 4218H		Ball	38 mm	36 VDC	56 VDC	2 Terminals	119 mm	119 mm	48 VDC	0.639 lb	289.85 g	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	-20 C	-20 °C	65 °C		Fiberglass Reinforced Nylon Polyamide (PA)	5.6 W	60000 Hrs	49 dB	CE CSA UL VDE	108.3 CFM	3.03 mł/min	Tubeaxial	3400 RPM	65 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 119mm L x 119mm H Ball 108.3 CFM (3.03mł/min) 2 Terminals
