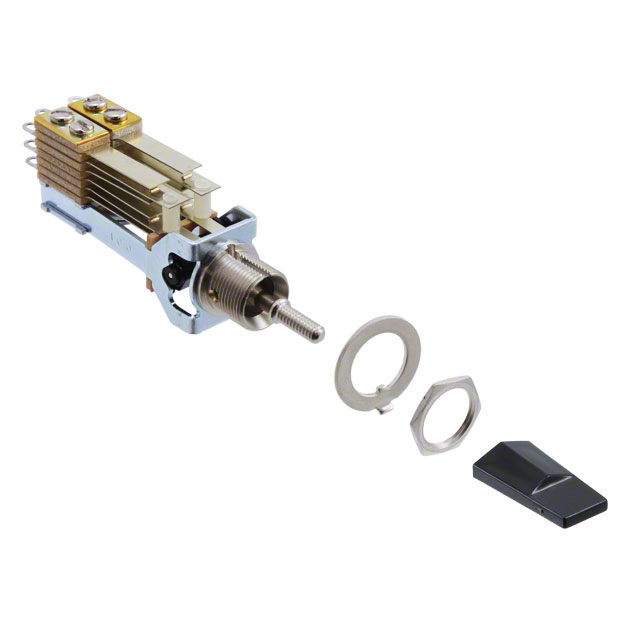

41212LX

Active

Switchcraft Inc.

SWITCH TOGGLE 2A 125V

Search across all available documentation for this part.

Active

Switchcraft Inc.

SWITCH TOGGLE 2A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	41212LX

Actuator Material	Thermoplastic
Actuator Type	Locking Lever
Bushing Thread	15/32-32
Current Rating (Amps)	2 A
Illumination	Non-Illuminated
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.7 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Actuator Type	Termination Style	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Bushing Thread	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Illumination
Switchcraft Inc. 41212LX	Locking Lever	Solder Lug	125 V	12.7 mm	15/32-32	2 A	70 °C	-30 ░C	Thermoplastic	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch Panel Mount
