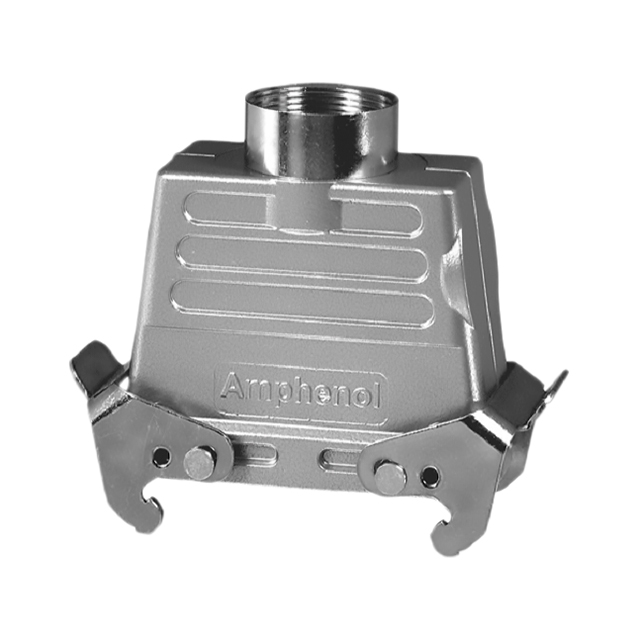

C14610R0166528

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZE16 M25

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZE16 M25

Technical Specifications

Parameters and characteristics for this part

Specification	C14610R0166528

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E16
Size / Dimension [x]	3.681 "
Size / Dimension [x]	93.5 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Top Entry
Thread Size	M25

Part	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Size	Ingress Protection	Lock Location	Connector Type	Style	Housing Material	Thread Size
Amphenol Tuchel Industrial C14610R0168038	Cable to Cable	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	100 °C	-40 °C	E16	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood Top	Hood - Coupling	Bottom Entry	Aluminum Die Cast
Amphenol Tuchel Industrial C14610R0166568		3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	100 °C	-40 °C	E16	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Hood	Top Entry	Aluminum Die Cast	M25
Amphenol Tuchel Industrial C14610R0166528		3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	100 °C	-40 °C	E16	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood	Hood	Top Entry	Aluminum Die Cast	M25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	45	$ 23.15

General part information

Hood Connector Top Entry M25 E16 IP65 - Dust Tight, Water Resistant

Technical documentation and resources

No documents available
