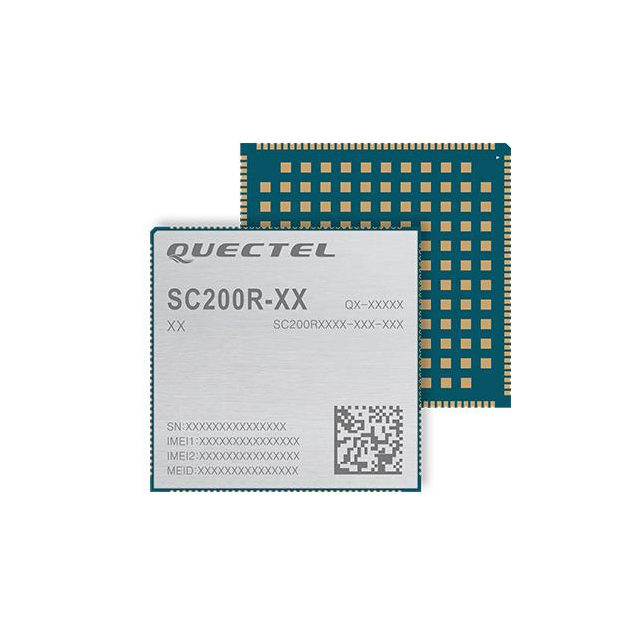

SC200REMNA-E51-UGNDA
ActiveQuectel
RF TXRX MOD BT NAV WIFISMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SC200REMNA-E51-UGNDA
ActiveQuectel
RF TXRX MOD BT NAV WIFISMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SC200REMNA-E51-UGNDA |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 150 Mbps |
| Frequency | 2.4 GHz, 850 MHz, 900 MHz, 1800 MHz, 5 GHz, 1900 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -35 °C |
| Package / Case | Module |
| Protocol | 802.11a/b/g/n, Bluetooth v4.1, GLONASS, Bluetooth v3.0, GPS, Beidou, Bluetooth v4.2, Galileo, Bluetooth v2.1 + EDR, GNSS |
| RF Family/Standard | WiFi, Bluetooth, Navigation |
| Serial Interfaces | UART, I2C, SPI, GPIO, SDIO, ADC, I2S, USB |
| Utilized IC / Part | Qualcomm® Snapdragon QCM2151 |
| Voltage - Supply [Max] | 4.2 V |
| Voltage - Supply [Min] | 3.55 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 94.28 | |
| 10 | $ 88.89 | |||
| 25 | $ 83.51 | |||
| 100 | $ 78.12 | |||
| Digi-Reel® | 1 | $ 110.64 | ||
| 10 | $ 89.89 | |||
| 25 | $ 83.91 | |||
| 100 | $ 76.72 | |||
| Tape & Reel (TR) | 200 | $ 64.65 | ||
Description
General part information
SC200 Series
Bluetooth, Navigation, WiFi 802.11a/b/g/n, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, Galileo, GLONASS, GPS, GNSS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.4GHz, 5GHz Antenna Not Included Surface Mount
