AOZ8005FI

Obsolete

Alpha & Omega Semiconductor Inc.

TVS DIODE 5VWM 16VC 10MSOP

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

TVS DIODE 5VWM 16VC 10MSOP

Technical Specifications

Parameters and characteristics for this part

Specification	AOZ8005FI

Applications	HDMI, Ethernet
Capacitance @ Frequency	1 pF
Current - Peak Pulse (10/1000µs)	12 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C

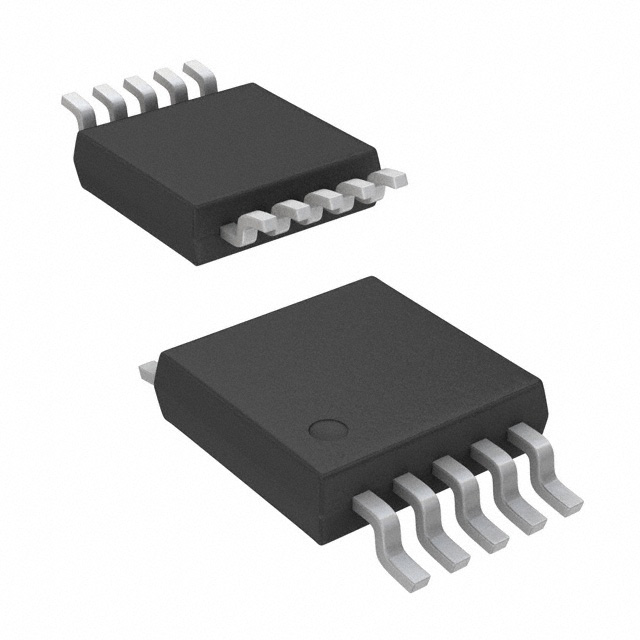

Package / Case	10-MSOP, 10-TFSOP
Package / Case [x]	3 mm
Package / Case [x]	0.118 in
Power Line Protection	True
Supplier Device Package	10-MSOP
Type	Steering
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	6.6 V
Voltage - Clamping (Max) @ Ipp [Max]	16 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Mounting Type	Applications	Type	Package / Case	Package / Case [x]	Package / Case [x]	Voltage - Reverse Standoff (Typ)	Voltage - Breakdown (Min) [Min]	Unidirectional Channels [custom]	Capacitance @ Frequency	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Peak Pulse (10/1000µs)	Power Line Protection
Alpha & Omega Semiconductor Inc. AOZ8005FI	Surface Mount	Ethernet HDMI	Steering	10-MSOP 10-TFSOP	3 mm	0.118 in	5 V	6.6 V	4	1 pF	10-MSOP	16 V	-40 °C	125 ¯C	12 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

16V Clamp 12A (100ns) Ipp Tvs Diode Surface Mount 10-MSOP
