A1183.12.065

Active

American Electrical Inc.

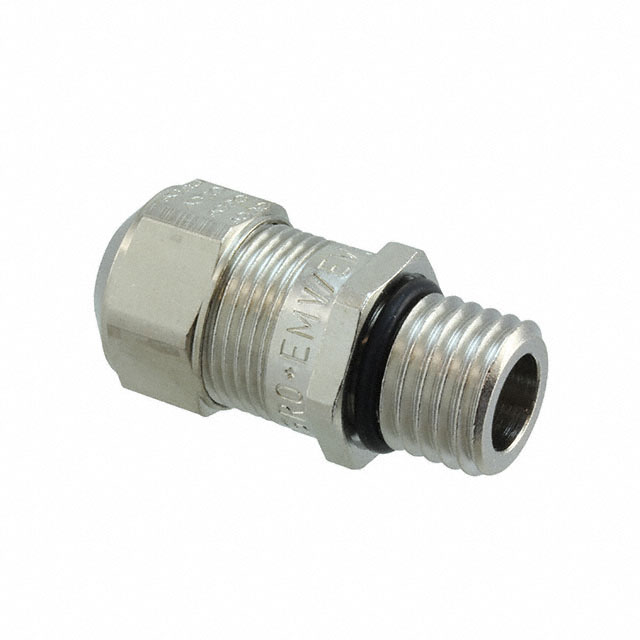

CABLE GLAND 5-6.5MM M12 BRASS

Search across all available documentation for this part.

Active

American Electrical Inc.

CABLE GLAND 5-6.5MM M12 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	A1183.12.065

Color	Silver
Includes	Seal, O-Ring, Strain Relief, Contact Spring
Ingress Protection	IP68, IP69K
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-60 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.256 "
Outside Cable Diameter (Max) [Max] [diameter]	6.5 mm
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Panel Hole Size	0.472 in
Panel Hole Size	12 mm
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	M12x1.5
Type	Cable Gland, Long Entry

Part	Ingress Protection	Panel Hole Size	Panel Hole Size	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Material	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]
American Electrical Inc. A1183.20	IP68 IP69K	0.787 in	20 mm	10 mm	0.394 in	8 mm	0.315 in	Silver	M20x1.5	0.591 in	15 mm	Cable Gland Long Entry	Brass Nickel Plated	Contact Spring O-Ring Seal Strain Relief
American Electrical Inc. A1183.12.050	IP68 IP69K	0.472 in	12 mm	10 mm	0.394 in			Silver	M12x1.5	0.197 in	5 mm	Cable Gland Long Entry	Brass Nickel Plated	Contact Spring O-Ring Seal Strain Relief	3.5 mm	0.138 in	100 °C	-60 °C
American Electrical Inc. A1183.12.065	IP68 IP69K	0.472 in	12 mm	10 mm	0.394 in			Silver	M12x1.5	0.256 "	6.5 mm	Cable Gland Long Entry	Brass Nickel Plated	Contact Spring O-Ring Seal Strain Relief	5 mm	0.197 in	100 °C	-60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 10.73

General part information

Cable Gland, Long Entry Brass, Nickel Plated M12x1.5 Silver
