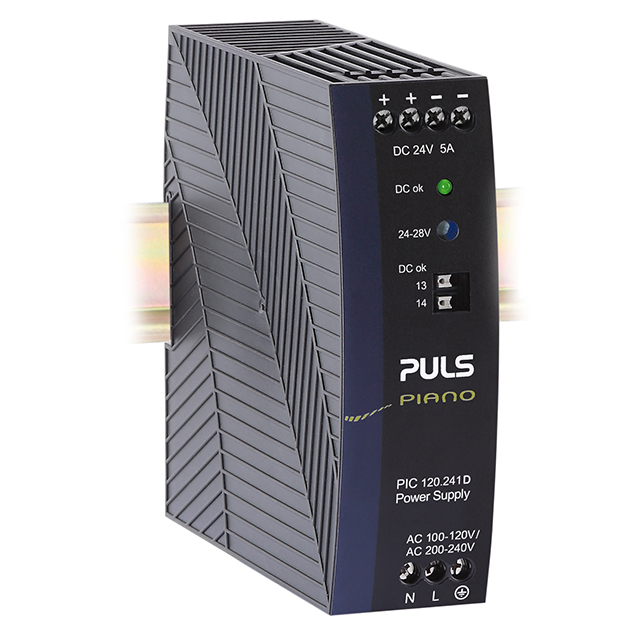

PIC120.241D

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 120W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	PIC120.241D

AC Voltage - Input [Max]	264 VAC, 132 VAC
AC Voltage - Input [Min]	90 VAC, 180 VAC
Applications	ITE (Commercial)
Approval Agency	IEC, EAC, UL
Current - Output (Max) [Max]	5 A
Efficiency	92.3 %
Features	Universal Input, Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	4.88 "
Size / Dimension [x]	124 mm
Size / Dimension [y]	1.54 "
Size / Dimension [y]	39 mm
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Standard Number	62368-1, 61010-2-201
Voltage - Isolation	500 V
Voltage - Output 1	24 V

Part	Features	Voltage - Output 1	Standard Number	Applications	Approval Agency	Voltage - Isolation	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Number of Outputs	Current - Output (Max) [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
PULS, LP PIC120.241D	Adjustable Output Load Sharing Universal Input	24 V	61010-2-201 62368-1	ITE (Commercial)	EAC IEC UL	500 V	AC	70 °C	0 °C	132 VAC 264 VAC	90 VAC 180 VAC	1	5 A	92.3 %	1.54 "	4.88 "	4.88 "	124 mm	39 mm	124 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 157.50

General part information

AC/DC DIN RAIL SUPPLY 24V 120W
