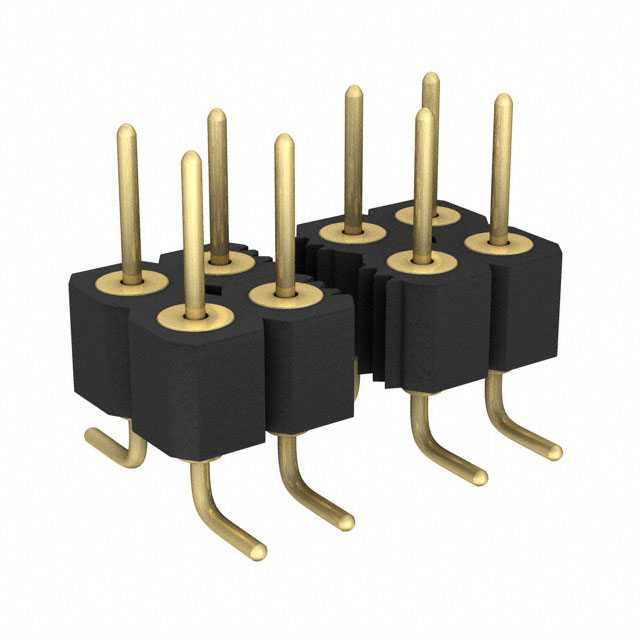

802-10-018-30-001191

Active

PRECI-DIP SA

CONN HEADER SMD 18POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

802-10-018-30-001191

Active

PRECI-DIP SA

CONN HEADER SMD 18POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	802-10-018-30-001191

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	0.191 in
Contact Length - Mating	4.85 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

802-10 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Shape	Fastening Type	Number of Positions	Number of Positions Loaded	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Voltage Rating	Contact Type	Insulation Color	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Insulation Material	Termination	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Features
PRECI-DIP SA 802-10-070-66-001101	-55 °C	125 °C	Gold	Circular	Push-Pull	70	All	Header	10 çin	0.25 çm	3 A	0.15 in	3.81 mm	Bronze	150 VDC	Male Pin	Black	Unshrouded	10 çin	0.25 çm	0.191 in	4.85 mm	11.85 mm	0.467 in	Through Hole	Gold	2.54 mm	0.1 in	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Press-Fit Solder	UL94 V-0	0.1 in	2.54 mm
PRECI-DIP SA 802-10-008-66-001101	-55 °C	125 °C	Gold	Circular	Push-Pull	8	All	Header	10 çin	0.25 çm	3 A	0.15 in	3.81 mm	Bronze	150 VDC	Male Pin	Black	Unshrouded	10 çin	0.25 çm	0.191 in	4.85 mm	11.85 mm	0.467 in	Through Hole	Gold	2.54 mm	0.1 in	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Press-Fit Solder	UL94 V-0	0.1 in	2.54 mm
PRECI-DIP SA 802-10-046-10-002101	-55 °C	125 °C	Gold	Circular	Push-Pull	46	All	Header	10 çin	0.25 çm	3 A			Brass	150 VDC	Male Pin	Black	Unshrouded	10 çin	0.25 çm	3.6 mm				Through Hole	Gold	2.54 mm	0.1 in	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	UL94 V-0	0.1 in	2.54 mm	0.118 in	3 mm	0.141 in
PRECI-DIP SA 802-10-042-10-001101	-55 °C	125 °C	Gold	Circular	Push-Pull	42	All	Header	10 çin	0.25 çm	3 A			Brass	150 VDC	Male Pin	Black	Unshrouded	10 çin	0.25 çm	0.191 in	4.85 mm	11.12 mm	0.438 in	Through Hole	Gold	2.54 mm	0.1 in	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	UL94 V-0	0.1 in	2.54 mm	0.121 in	3.08 mm
PRECI-DIP SA 802-10-070-10-002101	-55 °C	125 °C	Gold	Circular	Push-Pull	70	All	Header	10 çin	0.25 çm	3 A			Brass	150 VDC	Male Pin	Black	Unshrouded	10 çin	0.25 çm	3.6 mm				Through Hole	Gold	2.54 mm	0.1 in	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	UL94 V-0	0.1 in	2.54 mm	0.118 in	3 mm	0.141 in
PRECI-DIP SA 802-10-072-10-001101	-55 °C	125 °C	Gold	Circular	Push-Pull	72	All	Header	10 çin	0.25 çm	3 A			Brass	150 VDC	Male Pin	Black	Unshrouded	10 çin	0.25 çm	0.191 in	4.85 mm	11.12 mm	0.438 in	Through Hole	Gold	2.54 mm	0.1 in	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	UL94 V-0	0.1 in	2.54 mm	0.121 in	3.08 mm
PRECI-DIP SA 802-10-018-30-001191	-55 °C	125 °C	Gold	Circular	Push-Pull	18	All	Header	10 çin	0.25 çm	3 A			Brass	150 VDC	Male Pin	Black	Unshrouded	10 çin	0.25 çm	0.191 in	4.85 mm			Surface Mount	Gold	2.54 mm	0.1 in	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	UL94 V-0	0.1 in	2.54 mm				Pick and Place
PRECI-DIP SA 802-10-004-30-001191	-55 °C	125 °C	Gold	Circular	Push-Pull	4	All	Header	10 çin	0.25 çm	3 A			Brass	150 VDC	Male Pin	Black	Unshrouded	10 çin	0.25 çm	0.191 in	4.85 mm			Surface Mount	Gold	2.54 mm	0.1 in	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	UL94 V-0	0.1 in	2.54 mm				Pick and Place
PRECI-DIP SA 802-10-056-65-001101	-55 °C	125 °C	Gold	Circular	Push-Pull	56	All	Header	10 çin	0.25 çm	3 A	0.11 in		Bronze	150 VDC	Male Pin	Black	Unshrouded	10 çin	0.25 çm	0.191 in	4.85 mm	10.85 mm	0.427 "	Through Hole	Gold	2.54 mm	0.1 in	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Press-Fit Solder	UL94 V-0	0.1 in	2.54 mm		2.79 mm
PRECI-DIP SA 802-10-040-66-001101	-55 °C	125 °C	Gold	Circular	Push-Pull	40	All	Header	10 çin	0.25 çm	3 A	0.15 in	3.81 mm	Bronze	150 VDC	Male Pin	Black	Unshrouded	10 çin	0.25 çm	0.191 in	4.85 mm	11.85 mm	0.467 in	Through Hole	Gold	2.54 mm	0.1 in	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Press-Fit Solder	UL94 V-0	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2200	$ 2.54

Description

General part information

802-10 Series

Connector Header Surface Mount 18 position 0.100" (2.54mm)
