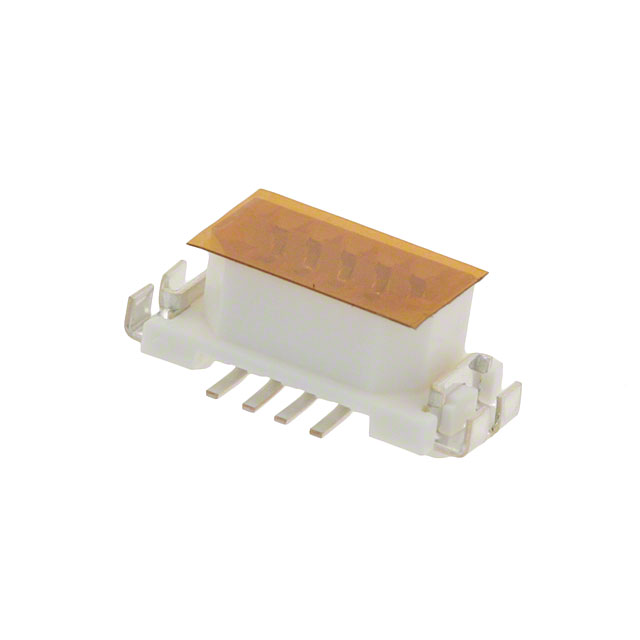

DF9-9P-1V(32)
ActiveHirose Electric USA, Inc.
CONN HDR 9POS SMD TIN
Deep-Dive with AI
Search across all available documentation for this part.
DF9-9P-1V(32)
ActiveHirose Electric USA, Inc.
CONN HDR 9POS SMD TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF9-9P-1V(32) |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Tin |
| Contact Finish Thickness | 39.4 Áin |
| Contact Finish Thickness | 1 Ám |
| Features | Solder Retention, Board Guide |
| Height Above Board | 0.13 in |
| Height Above Board | 3.3 mm |
| Mated Stacking Heights [z] | 4.3 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.03 | |
| 10 | $ 0.87 | |||
| 25 | $ 0.83 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.78 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.64 | |||
| Digi-Reel® | 1 | $ 1.03 | ||
| 10 | $ 0.87 | |||
| 25 | $ 0.83 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.78 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.64 | |||
| Tape & Reel (TR) | 1000 | $ 0.57 | ||
| 2000 | $ 0.53 | |||
| 3000 | $ 0.51 | |||
| 5000 | $ 0.48 | |||
| 7000 | $ 0.47 | |||
| 10000 | $ 0.45 | |||
Description
General part information
DF9-9 Series
9 Position Connector Header, Center Strip Contacts Surface Mount Tin
