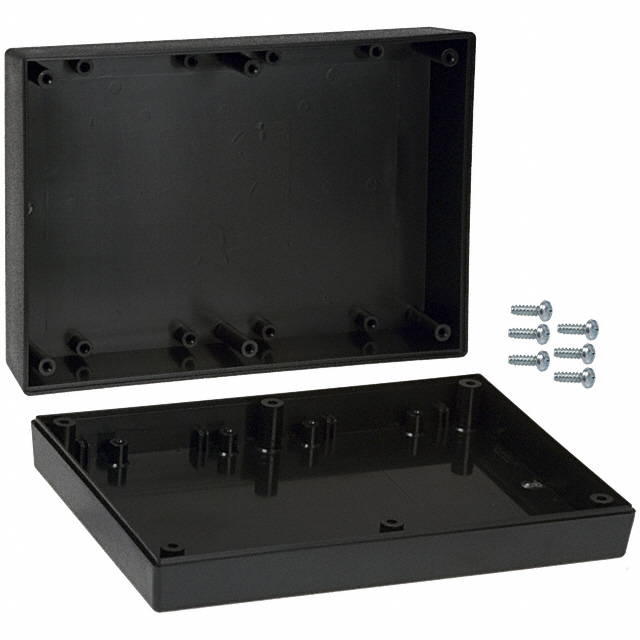

172I,BK

Active

Serpac

BOX ABS BLACK 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	172I,BK

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	50.8 mm
Height [z]	2 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.43 lb
Weight	195.04 g

Part	Material Flammability Rating	Design	Color	Container Type	Ratings	Thickness	Thickness	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	Features	Weight	Weight	Area (L x W)	Area (L x W)	Material
Serpac 172I,BK	UL94 HB	Hand Held Split Sides	Black	Box	IP40 NEMA 1	2.54 mm	0.1 in	123.95 mm	174.75 mm	4.88 in	6.88 in	50.8 mm	2 in	PCB Supports	0.43 lb	195.04 g	33.6 in²	217 cm²	Plastic ABS
Serpac 172I,AL	UL94 HB	Hand Held Split Sides	Almond	Box	IP40 NEMA 1	2.54 mm	0.1 in	123.95 mm	174.75 mm	4.88 in	6.88 in	50.8 mm	2 in	PCB Supports	0.43 lb	195.04 g	33.6 in²	217 cm²	Plastic ABS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Split Sides 6.880" L x 4.880" W (174.75mm x 123.95mm) X 2.000" (50.80mm)
