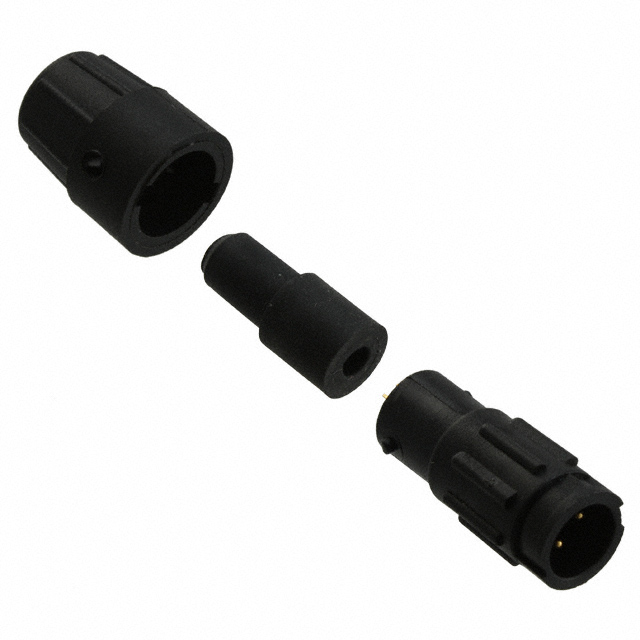

18282-3PG-311
ActiveConxall/Switchcraft
CONN RCPT MALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
18282-3PG-311
ActiveConxall/Switchcraft
CONN RCPT MALE 3P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 18282-3PG-311 |
|---|---|
| Applications | Medical, Data, Instrumentation, Industrial |
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [diameter] | 2.29 mm |
| Cable Opening [diameter] | 0.14 in, 0.09 in |
| Cable Opening [diameter] | 3.56 mm |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.19 | |
| 10 | $ 5.57 | |||
| 25 | $ 5.25 | |||
| 50 | $ 5.11 | |||
| 100 | $ 4.98 | |||
| 300 | $ 4.74 | |||
Description
General part information
18282-3P Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
